FDB2030 – Eaton – Molded Case Circuit Breaker

SKU FDB2030 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 369.99.Current price is: $ 122.99.

FDB2030 – Eaton – Molded Case Circuit Breaker

SKU FDB2030 Category
Thumb
Thumb
Product Image
Product Image
Click image to view

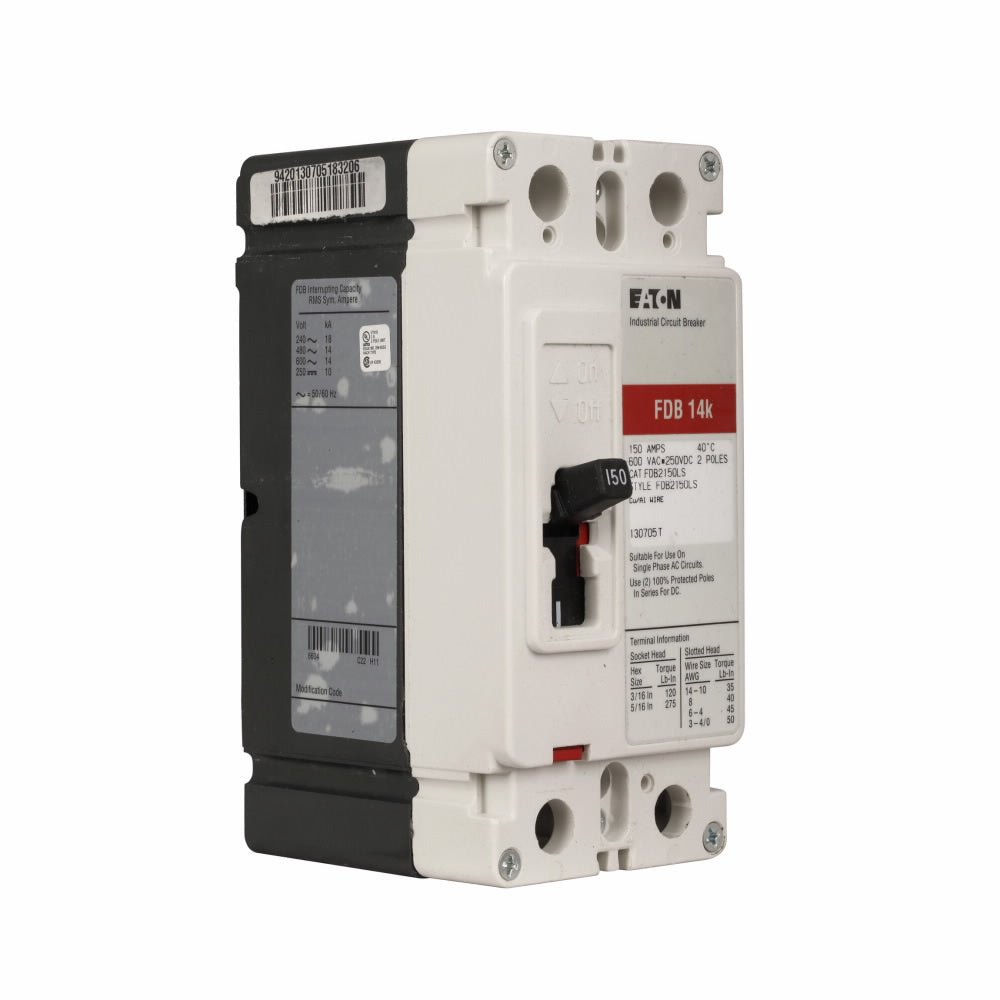

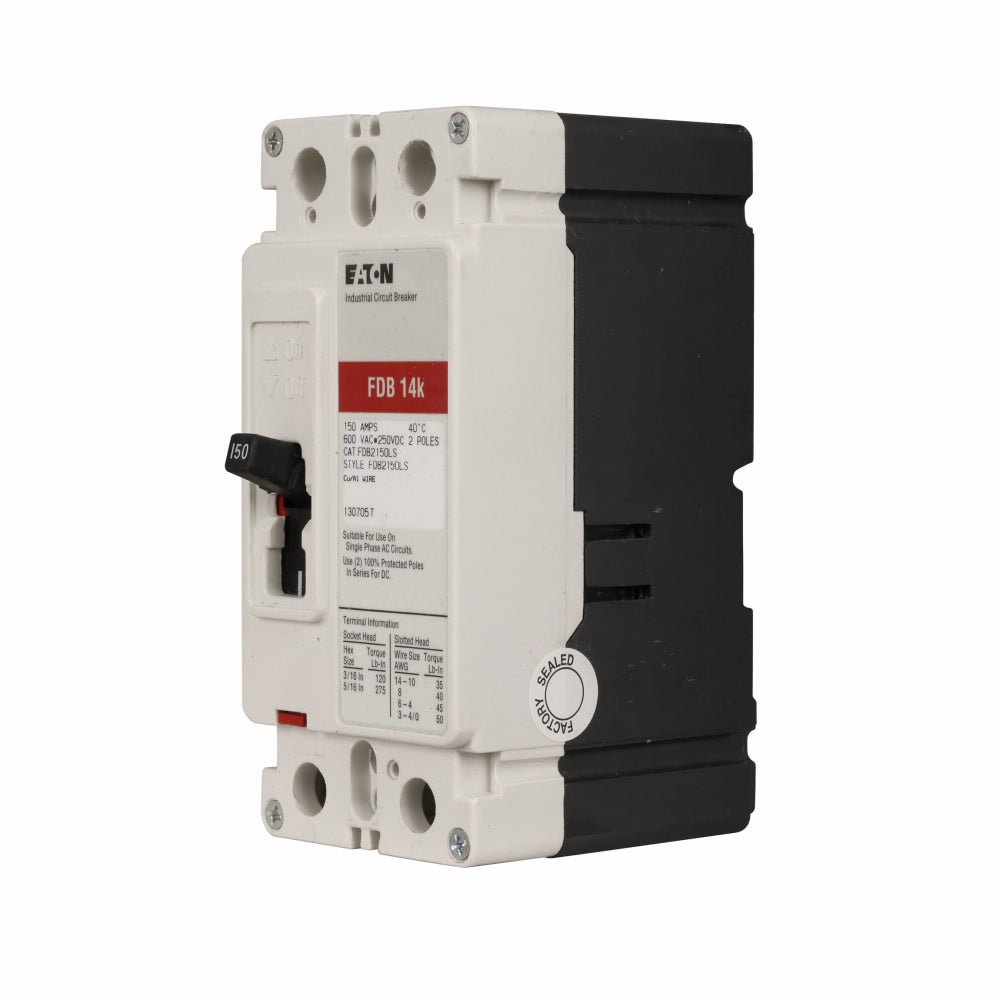

Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 369.99.Current price is: $ 122.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – FDB2030L- Eaton Molded Case Circuit Breaker

  • Part Number:

    FDB2030

  • Manufacturer:

    Eaton Cutler-Hammer

  • Family:

    Series C

  • Pole:

    2

  • Amp

    30

  • Volt:

    600

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Feed-Thru

  • Type:

    FDB

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    14kA@600V

  • Frame Type:

    F Frame

Dimensions

  • Dimensions (HxWxD):

    6″ x 2.75″ x 3.38″

  • Weight:

    3 lbs

Standards

CSA Approved logo

Product Description – FDB2030 – Eaton Molded Case Circuit Breaker

Cutler Hammer / Eaton / Westinghouse, Series C, type FDB, 2P, 1PH, 30A, 600V, 14kA@600V, standard interrupting capacity, 40 degree C, feed-thru, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Installation Instructions

PDF Icon Data Sheet
