FXD62B250 – Siemens – Molded Case Circuit Breaker

SKU FXD62B250 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 804.99

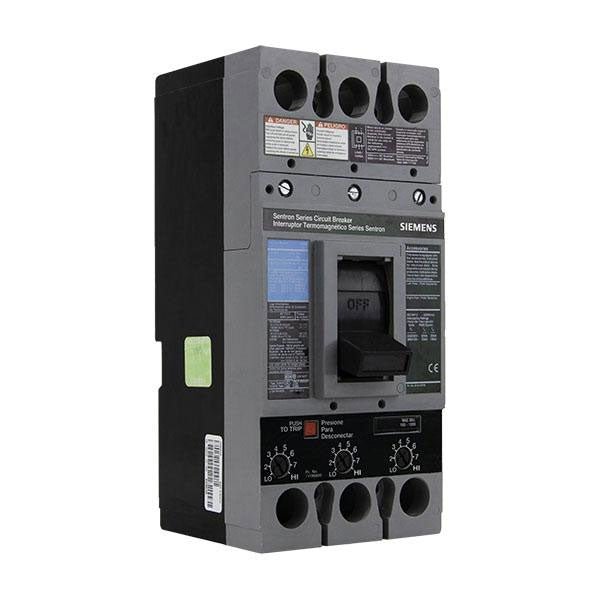

FXD62B250 – Siemens – Molded Case Circuit Breaker

SKU FXD62B250 Category
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 804.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – FXD62B250 – Siemens Breakers Molded Case Circuit Breakers

  • Part Number:

    FXD62B250

  • Manufacturer:

    Siemens Breakers

  • Family:

    Sentron Series

  • Pole:

    2

  • Amp

    250

  • Volt:

    600

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Bolt-On

  • Type:

    FXD

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.5″ x 4.5″ x 4″

  • Weight:

    7.4 lbs

Standards

CSA Approved logo

Product Description – FXD62B250 – Siemens Breakers Molded Case Circuit Breakers

Siemens, Sentron Series, type FXD, 2P, 1PH, 250A, 600V, 35kA@480V, standard interrupting capacity, 40 degree C, bolt-on, UL listed for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Data Sheet
