Generac | MLG15M-STD2, Trailer Mounted Mobile 14kw Diesel Generator, w/ Mitsubishi engine

SKU MLG15M-STD2 Category Tag
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$14,200.00

Generac | MLG15M-STD2, Trailer Mounted Mobile 14kw Diesel Generator, w/ Mitsubishi engine

SKU MLG15M-STD2 Category Tag
Price:

$14,200.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

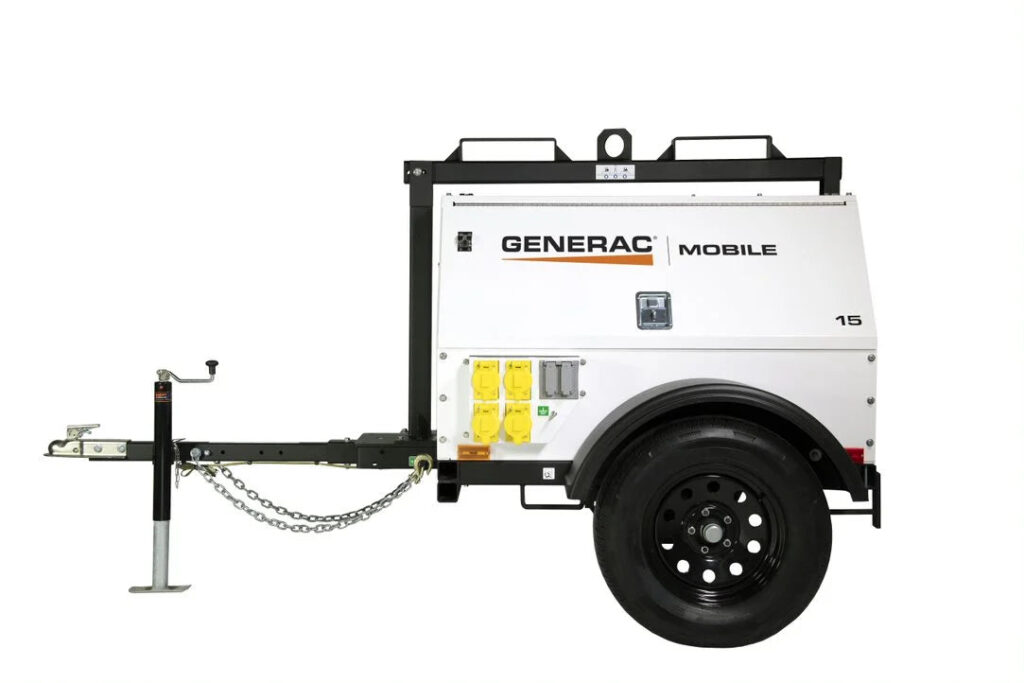

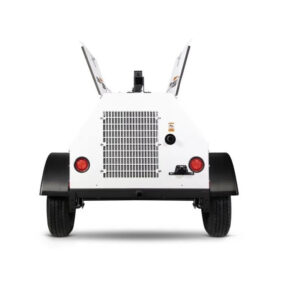

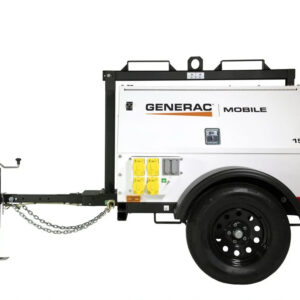

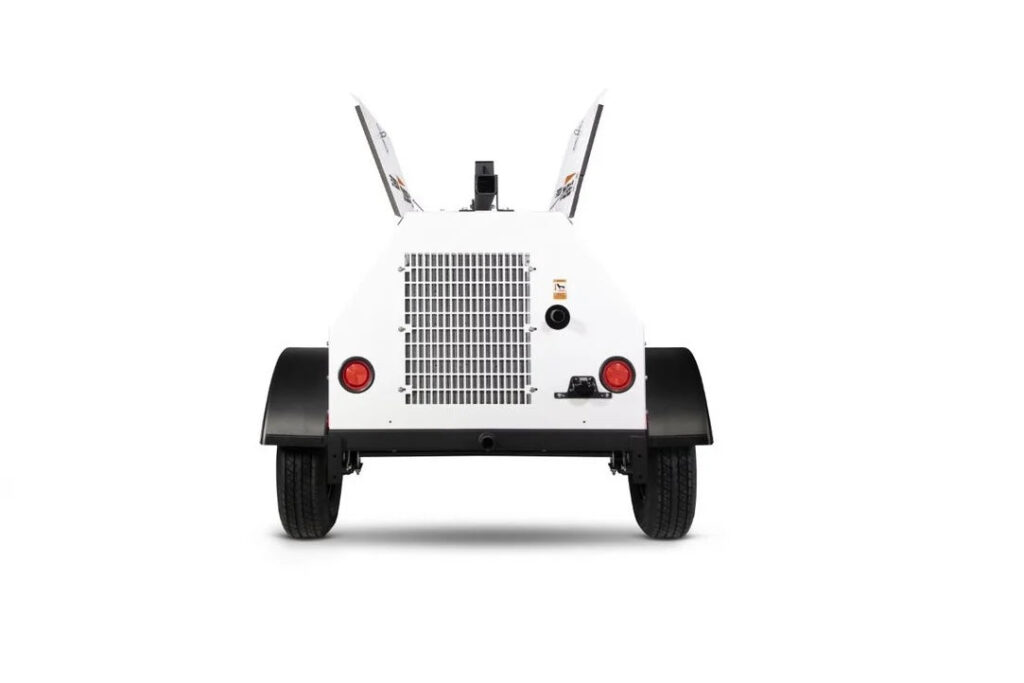

Generac Diesel 14kW Trailer Mounted Mobile Diesel Generator w/Mitsubishi Engine



Generac Model: MLG15M-STD2



Features

  • Full tubular steel frame, with lockable enclosure
  • Durable, fade resistant, white baked on powder coat finish
  • Stainless steel hinges, exterior hardware and pad lockable door latches
  • CSA Certified
  • Key switch to preheat (glow plug), start & stop
  • Automatic low oil level / high temp shutdown alerts
  • 70A Start limit main breaker
  • 2 year – 2,000 hour warranty
  • Marathon voltage regulation within +/- 1%
  • Self-priming 4 cylinder Mitsubishi engine
  • External convenience outlets with individual breaker switches
  • External emergency stop switch

Standard Features:

ENGINE SYSTEM
• Mitsubishi® MVS4L2-W464ML
• 4 cylinders
• Naturally aspirated
• Displacement: 107 in3(1.75 L)
• EPA Final Tier 4
• Power @ 1,800 rpm – hp (kW):
– Prime: 22.39 (16.7)—with fan
– Standby: 24.27 (18.1)—with fan
FUEL SYSTEM
• Usable Fuel tank capacity – 56 (212) US gal (L):
COOLING SYSTEM
• Capable of Operating at 120 °F (50 °C) Ambient
• Coolant capacity: 11.6 qt (10.98) L
• Oil filter: Full flow, spin-on type
• Air filter: Dry type
GENERATOR SYSTEM
• 60 Hz engine-driven alternator
• Marathon® 333CSA3024
• Voltage regulation ±1% with Marathon SE350
voltage regulator
• Voltages available: 120, 240
System Outputs
• Electrical power output :
– 1-phase standby: 14 kW (14 kVA)—58 A @
240 V
– 1-phase prime : 13 kW (13 kVA)—54 A @
240 V
POWER DISTRIBUTION
• 70 A main breaker
• Convenience receptacles with individual breakers
– Two 120 V, 20 A, GFCI, duplex outlets (NEMA
5-20R type)
– Three 240 V, 30 A, twistlock outlets (NEMA
L14-30R type)
– 240 V, 50 A, twistlock outlet (CS 6369)
• One 12 V, 770 CCA, wet cell battery
ENCLOSURE
• 14-gauge steel
– UV and fade resistant, high temperature
cured, white polyester powder paint
– Insulated and baffled
– 71 dB(A) @ 23 ft (7 m) @ prime power
• Fully lockable
• Emergency stop switch
• Central lifting point
• Multi-lingual operating and safety decals
• Document holder with owner’s manual – includes
AC and DC wiring diagrams
TRAILER
• One 2,200 lb (998 kg) leafspring axle
• 2 in (51 mm) ball hitch
• Transportation tie downs
• Safety chains with spring loaded safety hooks
• Tongue jack with footplate – 2,000 (998 kg)
• Tires: ST205/75R15
• DOT approved lights: Tail, side, brake, and
directionals
• Illuminated License Plate Holder
SYSTEM CONTROLS
• Key-activated switch with four positions (GLOW
PLUG, OFF, RUN, START)
• Hour meter
WARRANTY
• 2 year limited or 2,000 hours
– Unlimited hours covered in first year
CERTIFICATIONS
• CSA certified



Customers Also Bought

Placeholder
HF325N – Siemens 400 Amp 3 Pole 240 Volt ...
SKU: HF325N
In stock
Original price was: $5,504.00.Current price is: $2,546.99.
PQ3620G – Square D – 200 Amp Fusibl...
SKU: PQ3620G
In stock
Original price was: $2,566.00.Current price is: $1,938.99.
Placeholder
HE41B020 – Siemens – 20 Amp Molded ...
SKU: HE41B020
In stock
$170.99
FDC3070 – Eaton – MoldedCase Circui...
SKU: FDC3070
In stock
Original price was: $1,262.99.Current price is: $674.99.
HQR23B250L – Siemens – 250 Amp Mold...
SKU: HQR23B250L
In stock
$580.99
THJK436250WL – GE – Molded Case Cir...
SKU: THJK436250WL
In stock
$1,170.99
CECR9604T Baldor Baldor Crusher Motor (60 HP, 2...
SKU: BALDOR-0223
In stock
Original price was: $19,405.00.Current price is: $15,160.16.

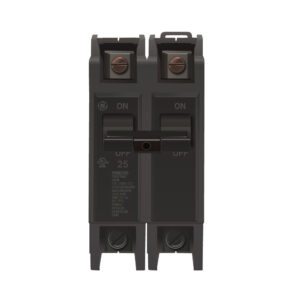

THQC2125 – GE – Molded Case Circuit...
SKU: MOLDED-4603
In stock
$23.99
EM2558TS-4 Baldor Industrial Motor, Three Phas...
SKU: BALDOR-1866
In stock
Original price was: $25,128.75.Current price is: $16,930.50.

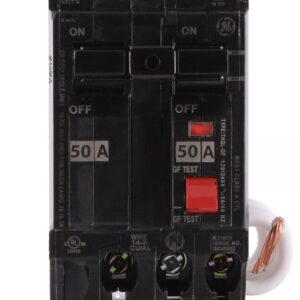

THQL2150GFT – GE – 50 Amp GFIC Circ...
