HDA261252 – Square D – Molded Case Circuit Breaker

SKU HDA261252 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 750.99

HDA261252 – Square D – Molded Case Circuit Breaker

SKU HDA261252 Category
Thumb

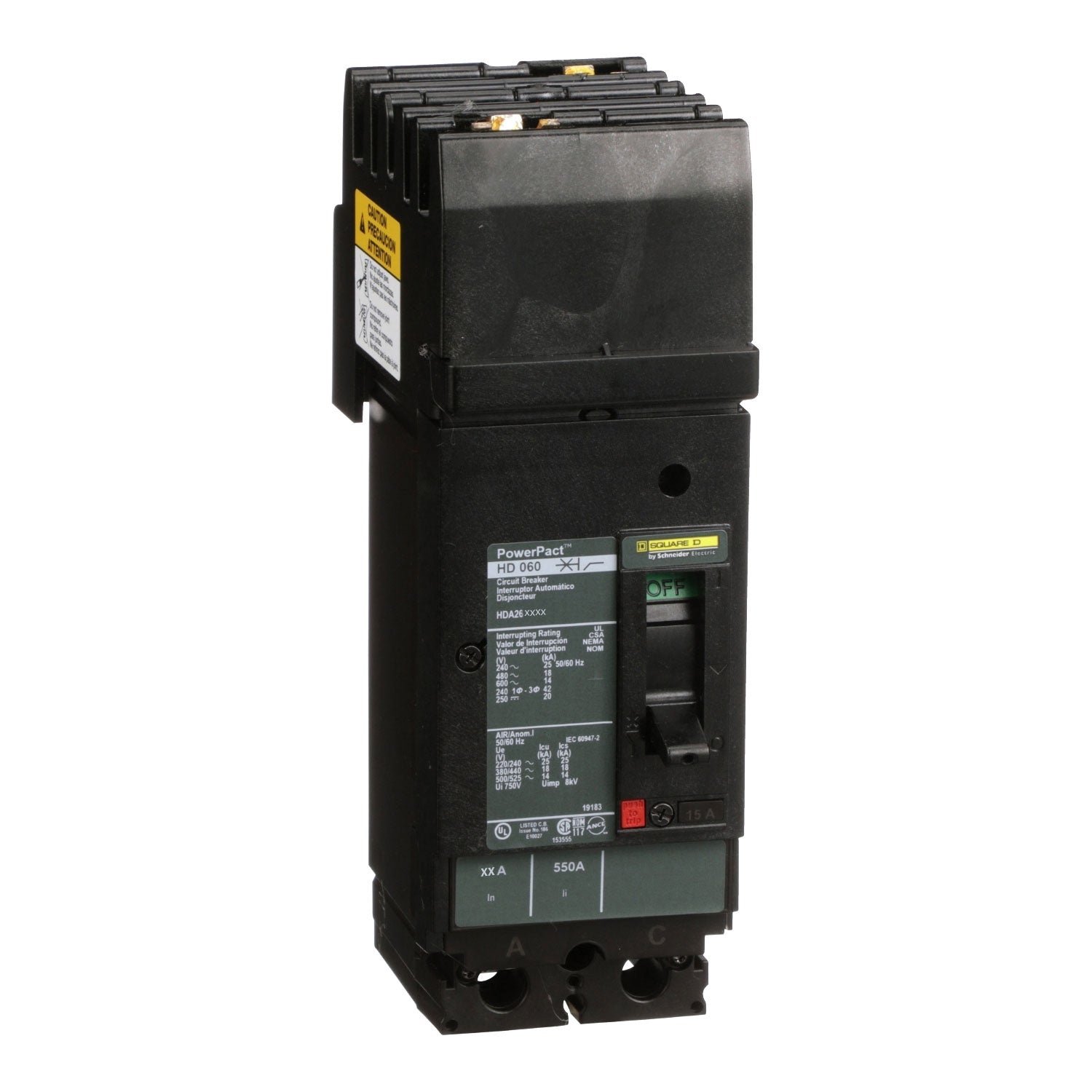

Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 750.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HDA261252 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 2-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HDA

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.73″ x 2.94″ x 4.8″

  • Weight:

    1.36 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    125 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    D

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Magnetic Hold Current:

    900 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 3/0 aluminium/copper terminal

Product Description – HDA261252 – Square D Powerpact Circuit Breaker

Square D, Powerpact, type HDA, 1PH, 2P, A & C phase connection, 125A, 600V, 18kA@480V, standard interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
