HDA36125 – Square D – Molded Case Circuit Breaker

SKU MOLDED-0775 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 2,730.00.Current price is: $ 729.99.

HDA36125 – Square D – Molded Case Circuit Breaker

SKU MOLDED-0775 Category
Thumb
Thumb
Product Image
Product Image
Click image to view

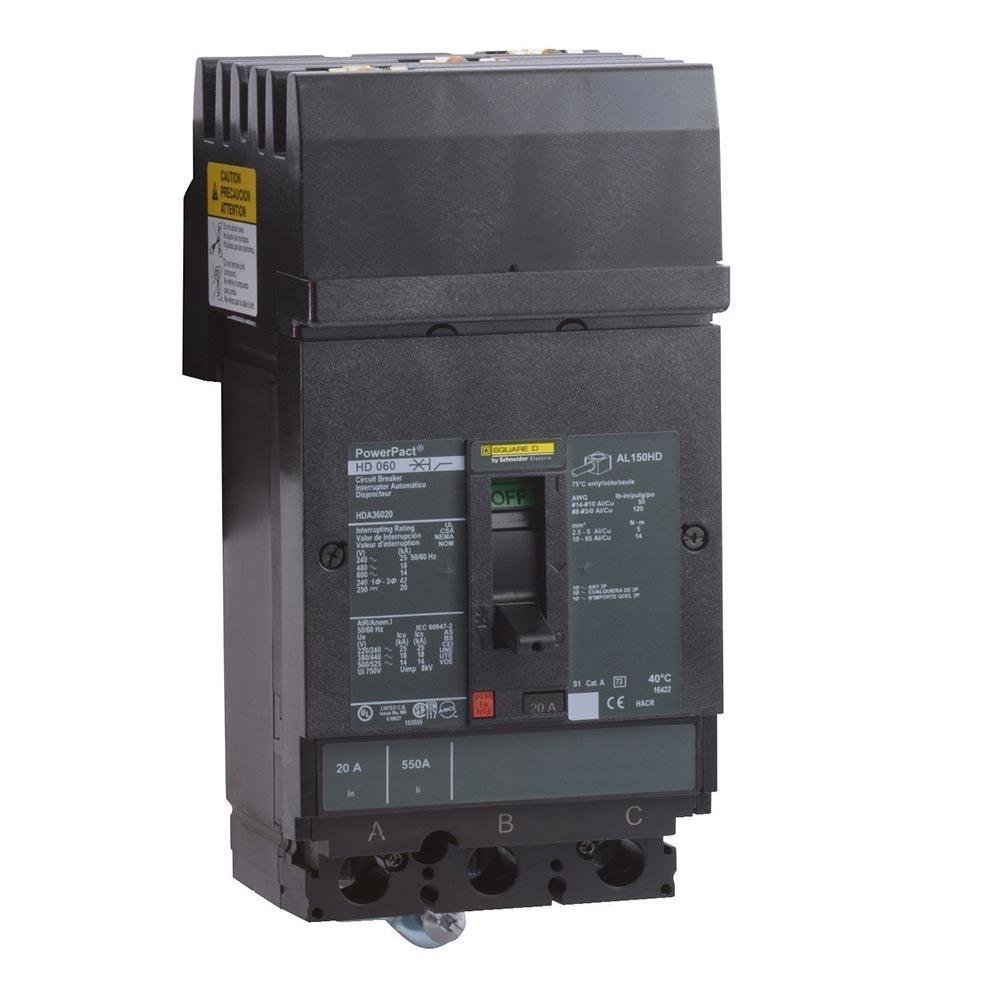

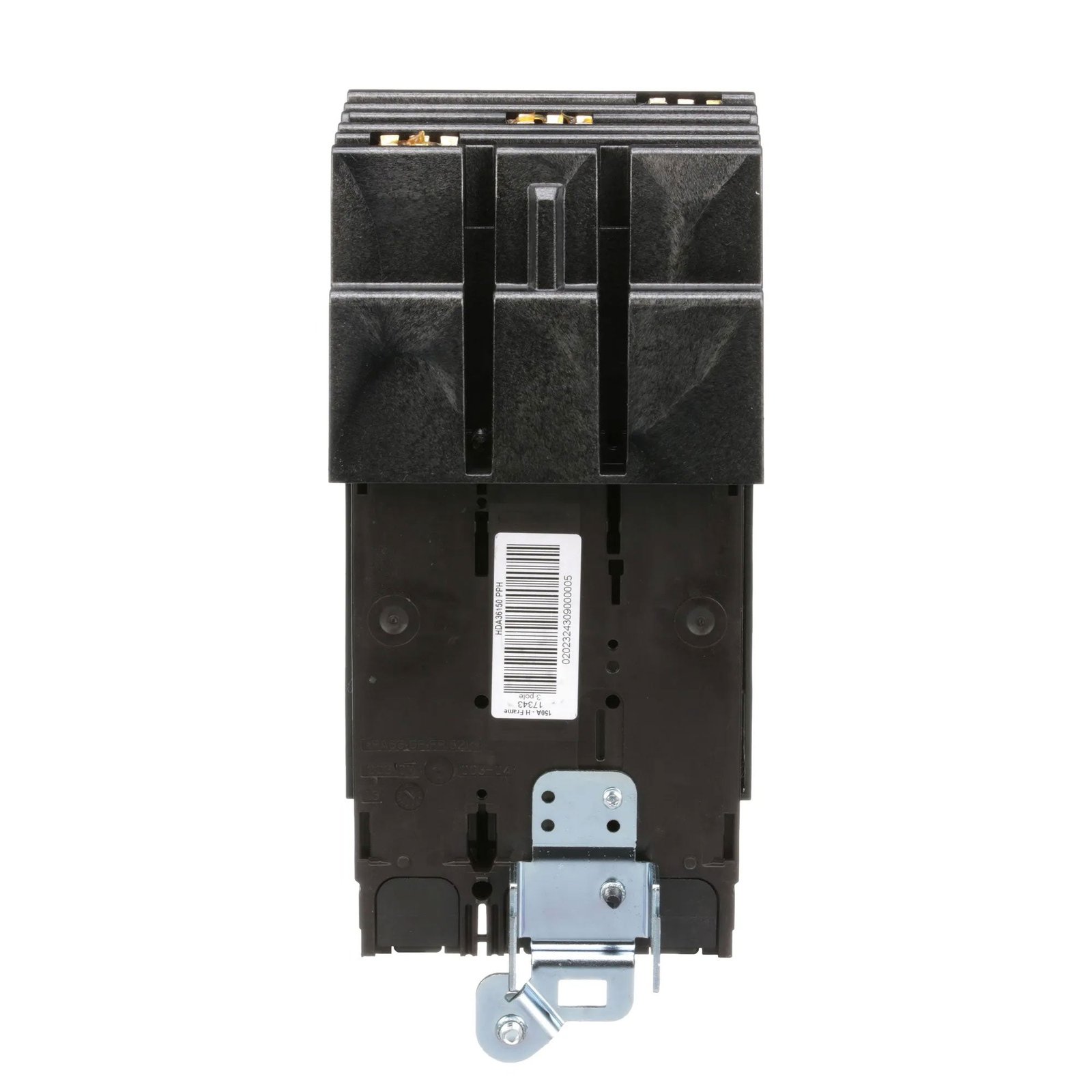

Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 2,730.00.Current price is: $ 729.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HDA36125 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HDA

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.73″ x 4.48″ x 4.8″

  • Weight:

    2.48 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    125 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    D

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Magnetic Hold Current:

    900 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 3/0 aluminium/copper terminal

Product Description – HDA36125 – Square D Powerpact Circuit Breaker

Square D, Powerpact, type HDA, 3PH, 3P, ABC phase connection, 125A, 600V, 18kA@480V, standard interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
