HDL26060 – Square D – Molded Case Circuit Breaker

SKU HDL26060 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 510.99

HDL26060 – Square D – Molded Case Circuit Breaker

SKU HDL26060 Category
Thumb

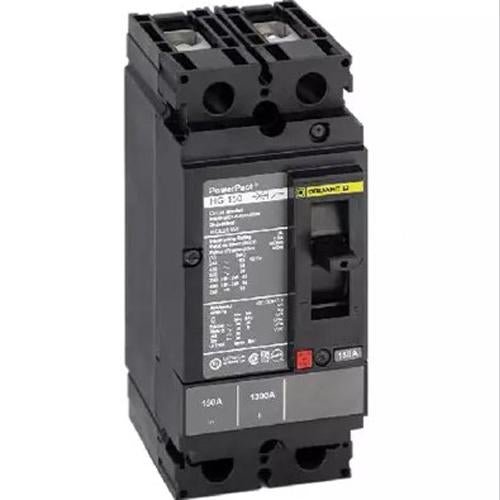

Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 510.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HDL26060 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Feed-Thru

  • Type:

    HDL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

     6.4″ x 2.74″ x 4.36″

  • Weight:

    1.36 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    60 A

  • Mounting Mode:

    Unit mount lug

  • Breaking Capacity Code

    D

  • Electrical Connection:

    Lugs line / Lugs load

  • Magnetic Hold Current:

    400 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 3/0 aluminium/copper terminal

Product Description – HDL26060 – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type HDL, 2P, 1PH, 60A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
