HED42B090L – Siemens – Molded Case Circuit Breaker

SKU HED42B090L Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 186.99

HED42B090L – Siemens – Molded Case Circuit Breaker

SKU HED42B090L Category
Thumb

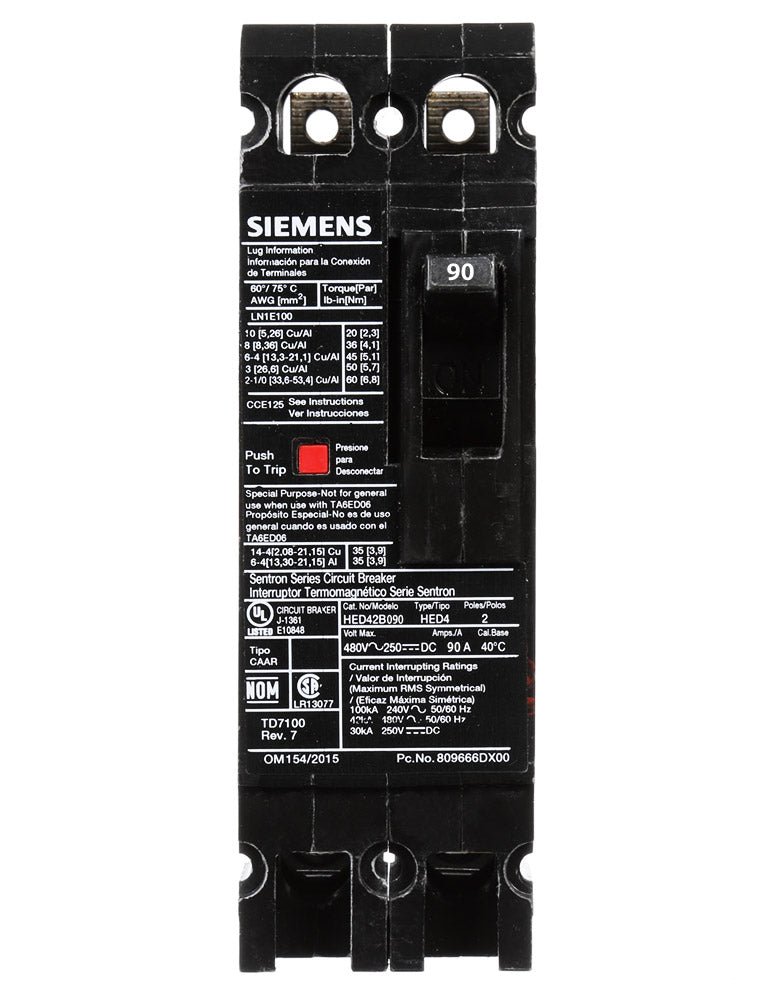

Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 186.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HED42B090L – Siemens Molded Case Circuit Breaker

  • Part Number:

    HED42B090L

  • Manufacturer:

    Siemens / ITE

  • Family:

    Sentron Series

  • Pole:

    2

  • Amp

    90

  • Volt:

    480

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Bolt-On

  • Type:

    HED

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    42kA@480V

Dimensions

  • Dimensions (HxWxD):

    6.35″ x 2″ x 3.92″

  • Weight:

    2.5 lbs

Standards

CSA Approved logo

Product Description – HED42B090L – Siemens Molded Case Circuit Breaker

Siemens, Sentron Series, type HED, 2P, 1PH, 90A, 480V, 42kA@480V, high interrupting capacity, 40 degree C, bolt-on, complete with load side lug terminals, thermal magnetic molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Data Sheet
