• Frame Type:

  H-Frame

• Trip Unit Technology:

  Thermal-magnetic

• Line Rated Current:

  20 Amp

• Magnetic Hold Current:

  350 A

• Mounting Mode:

  I-Line bracket

• Breaking Capacity Code:

  G

• Electrical Connection:

  I-Line connection line / Lugs load

• Continuous Current Rating:

  80%

• Control Type:

  Toggle

• AWG Gauge:

  AWG 14…AWG 3/0 aluminium/copper terminal

Standards

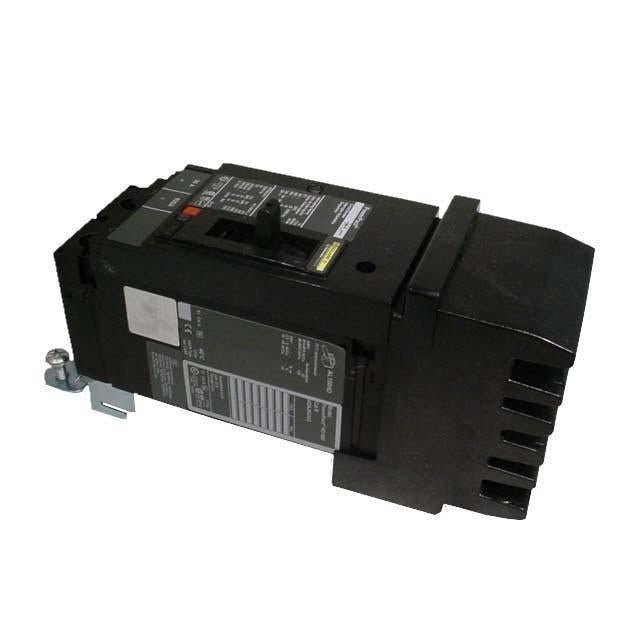

Product Description – HGA260204 – Square D Molded Case Circuit Breakers

Square D, Powerpact, type HGA, 2P, B & C phase connection, 1PH, 20A, 600V, 35kA@480V, high interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.
