Home » Products » HGL26050 – Square D – Molded Case Circuit Breaker

Sale!

HGL26050 – Square D – Molded Case Circuit Breaker

SKU HGL26050 Category 2 Pole

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 1,269.00.Current price is: $ 383.99.

Condition

Clear

Condition

Clear

HGL26050 – Square D – Molded Case Circuit Breaker

SKU HGL26050 Category 2 Pole

Click image to view

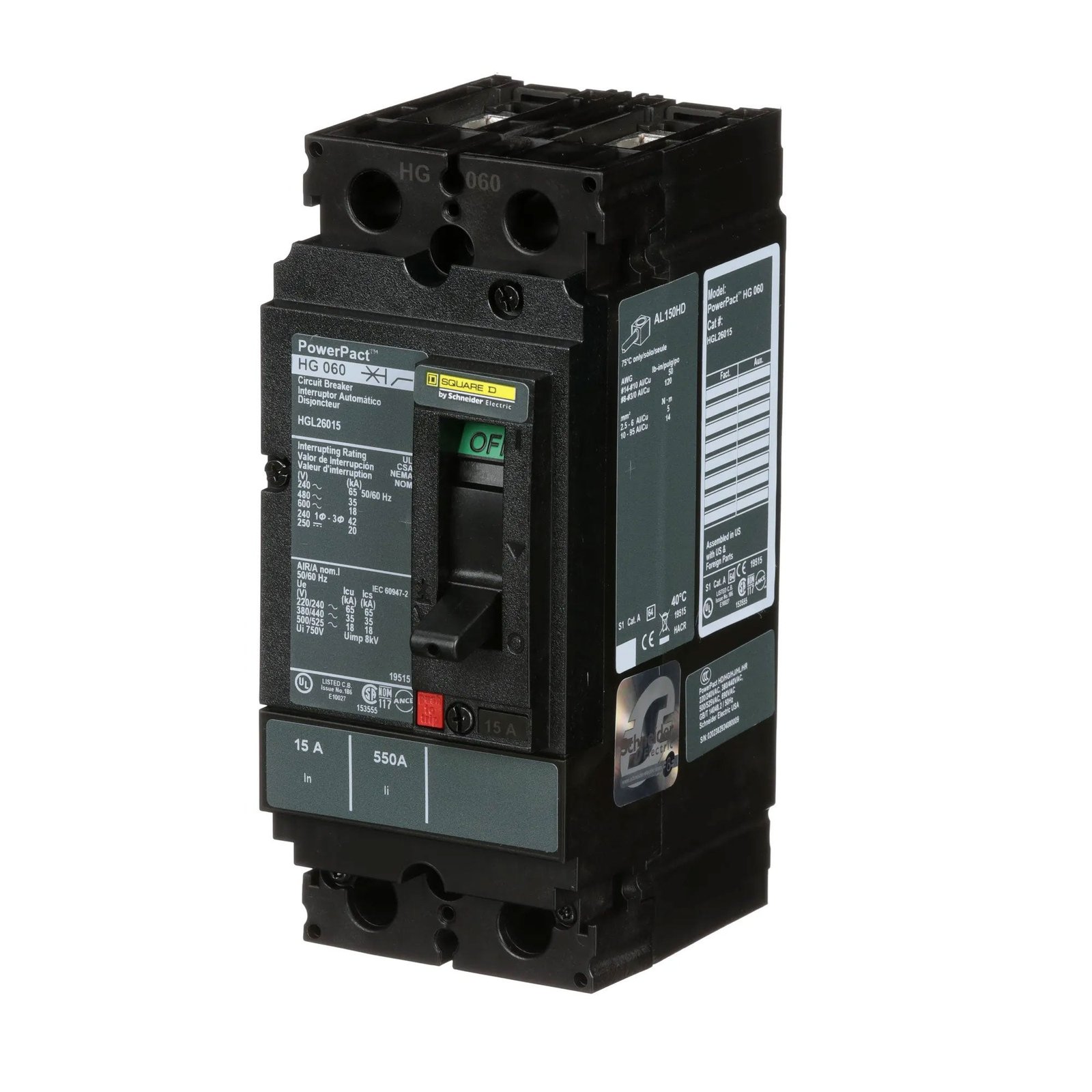

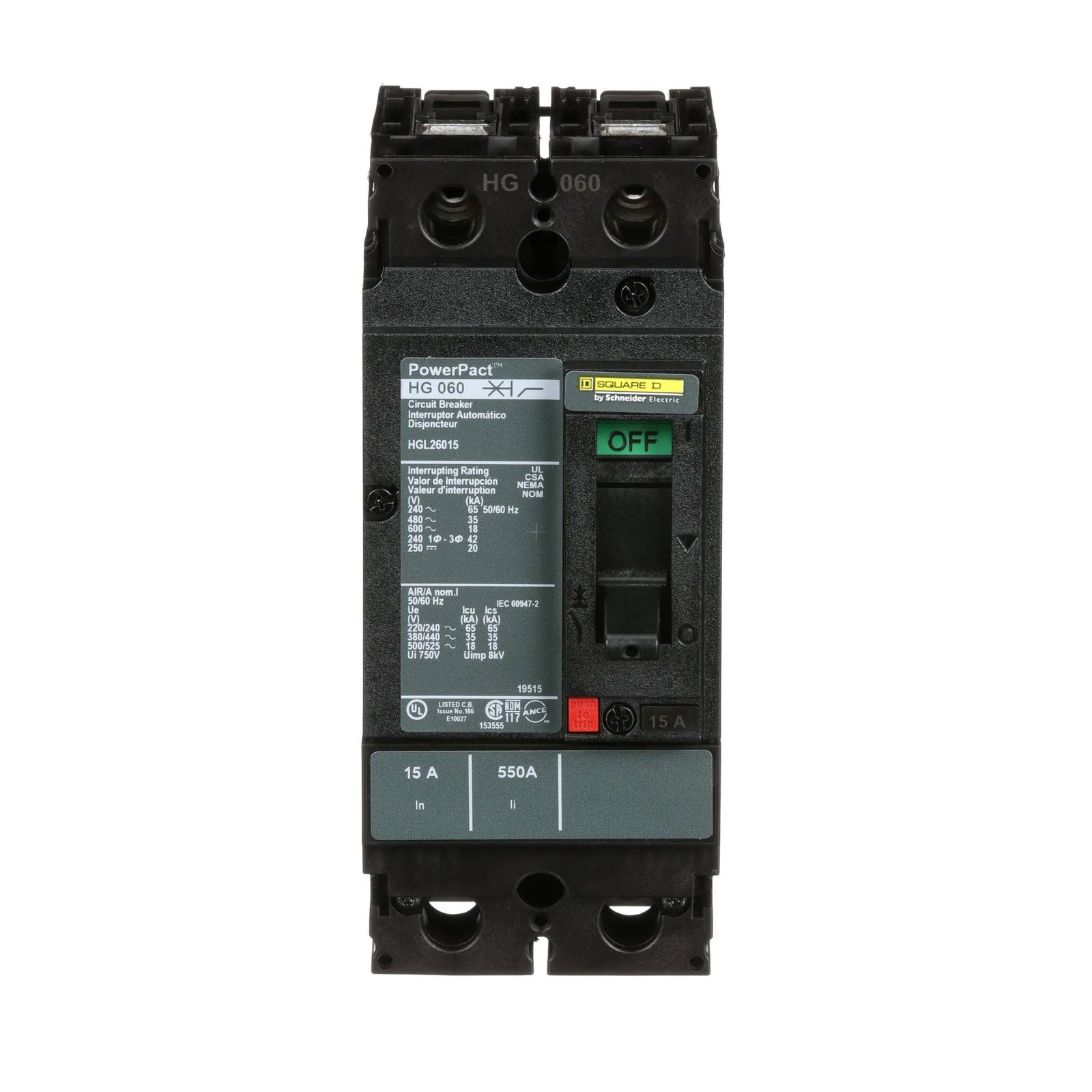

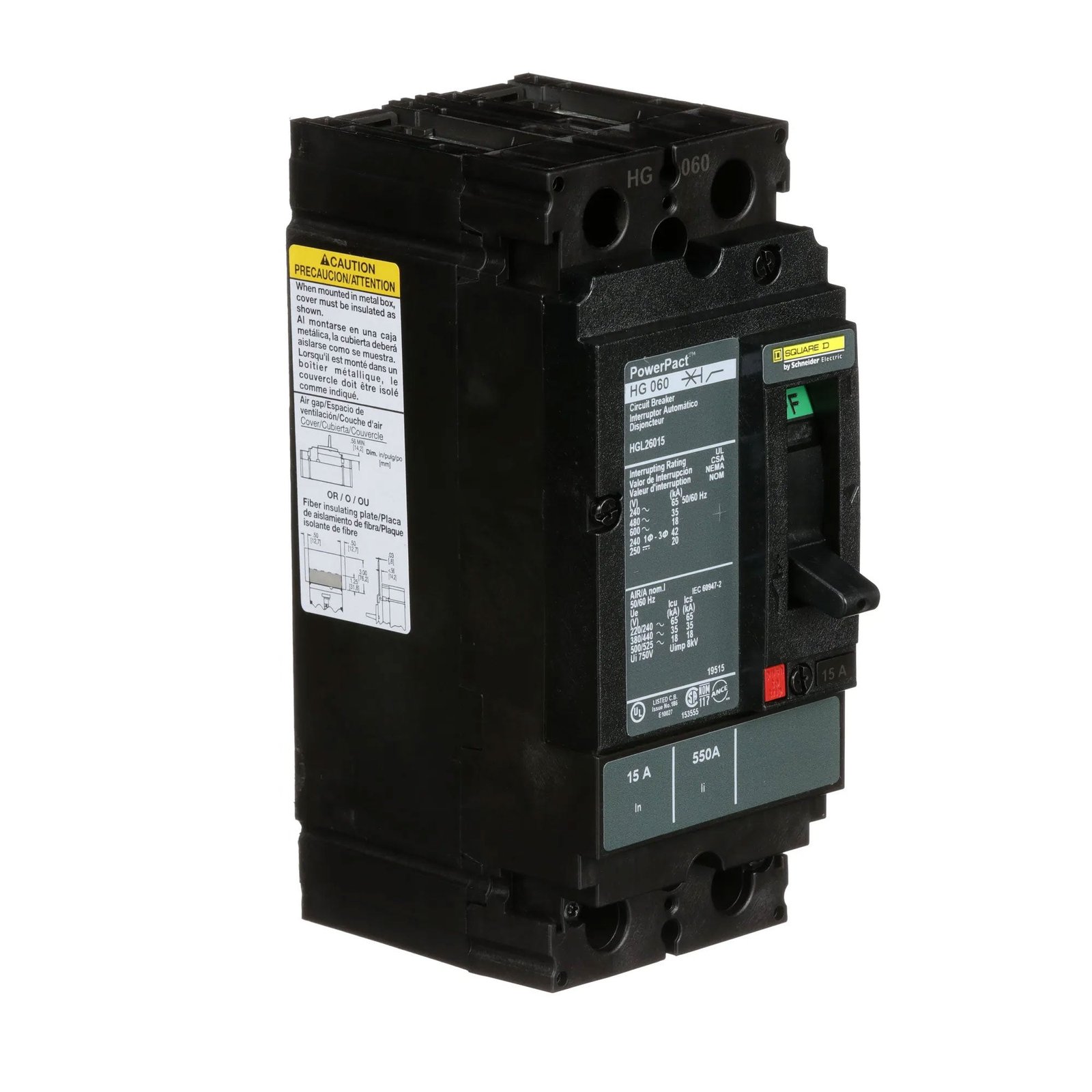

Photo may not represent actual item. Refer to name and product specs for all details.

Price:

Original price was: $ 1,269.00.Current price is: $ 383.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Condition

Clear

Description

Overview

Product Specifications – HGL26050 – Square D Powerpact Circuit Breaker

Part Number:

HGL26050
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

2
Amp

50
Volt:

600
Phase:

1

Category:

Molded Case / 2-Pole
Connection:

Feed-Thru
Type:

HGL
Functions:

LI – Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

35kA@480V

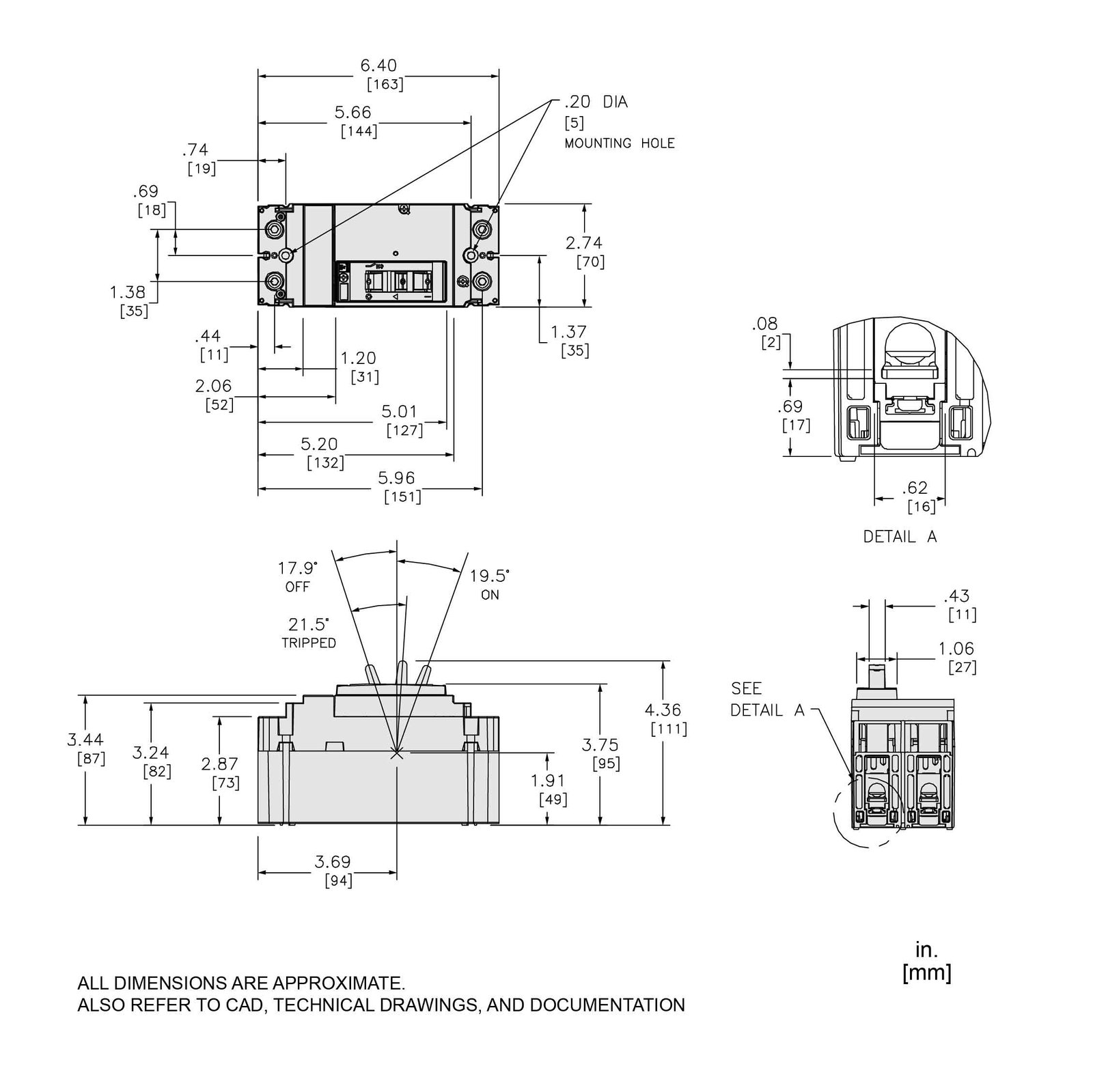

Dimensions

Dimensions (HxWxD):

6.4″ x 2.74″ x 4.36″

Weight:

4.85 lbs

Standards

Additional Details

Frame Type:

H-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

50 A
Mounting Mode:

Unit Mount Lug

Breaking Capacity Code

G
Electrical Connection:

Lugs line / Lugs load
Magnetic Hold Current:

400 A
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14…AWG 3/0 aluminium/copper terminal

Product Description – HGL26050 – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type HGL, 2P, 1PH, 50A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

Catalogue

Technical Specifications
