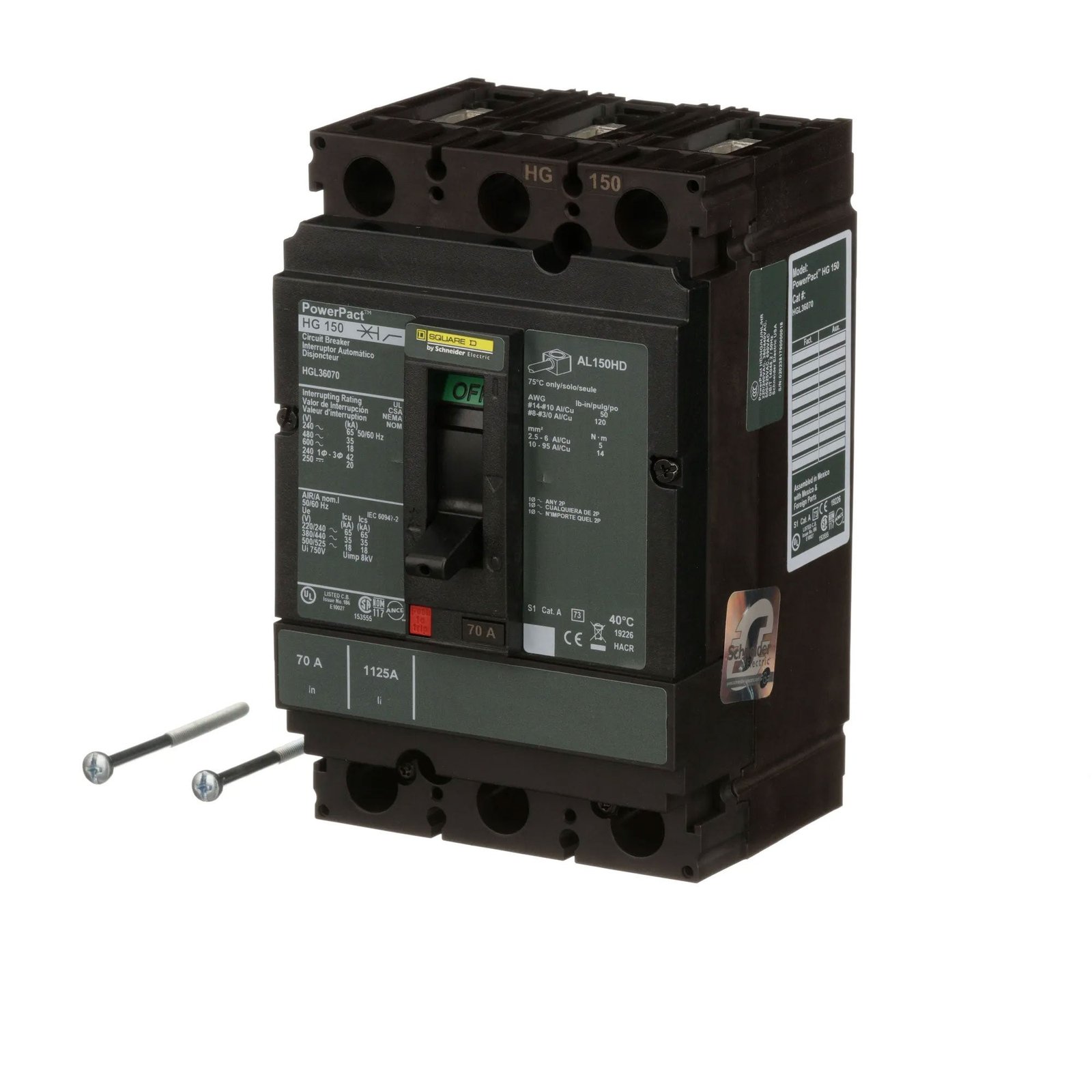

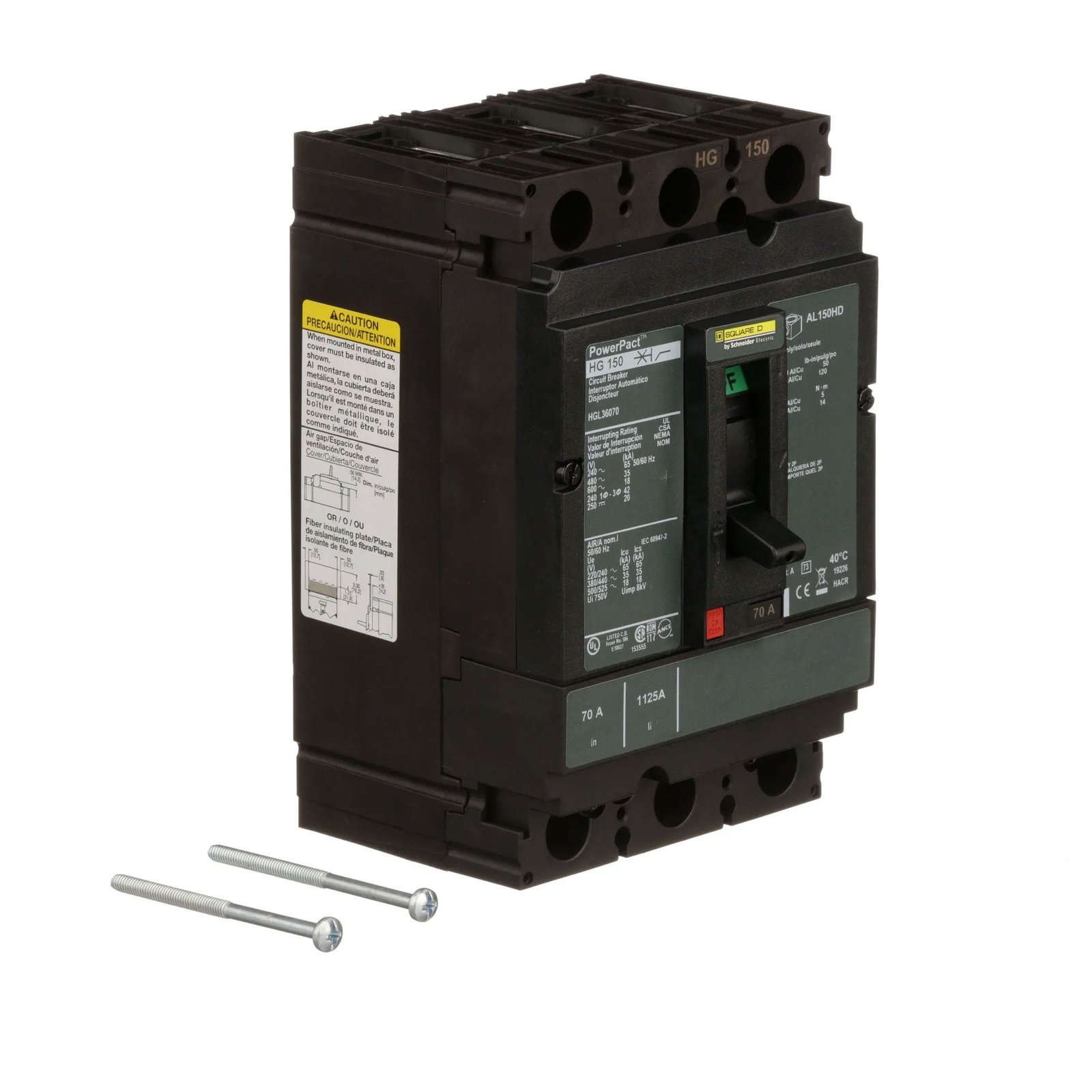

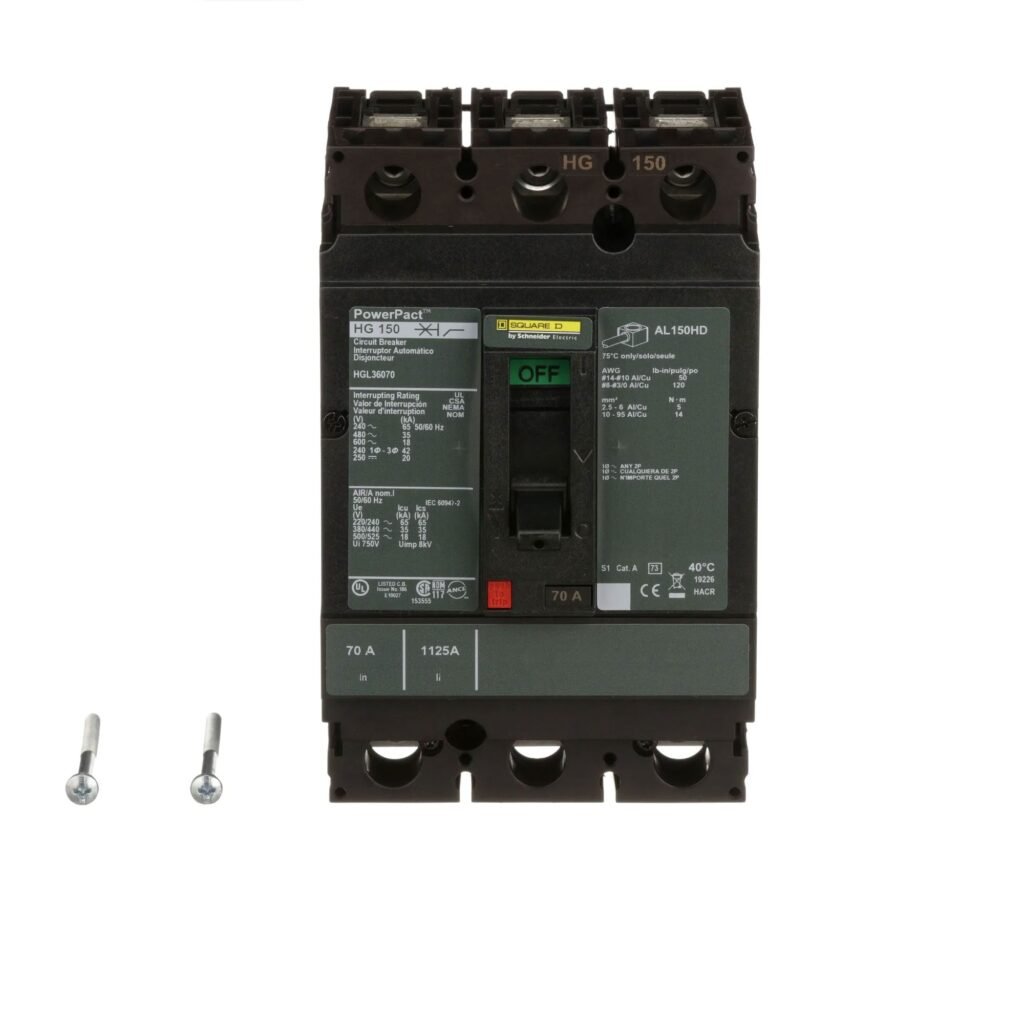

HGL36070 – Square D – Molded Case Circuit Breaker

SKU HGL36070 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 1,701.00.Current price is: $ 699.99.

HGL36070 – Square D – Molded Case Circuit Breaker

SKU HGL36070 Category
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 1,701.00.Current price is: $ 699.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HGL36070 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    HGL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

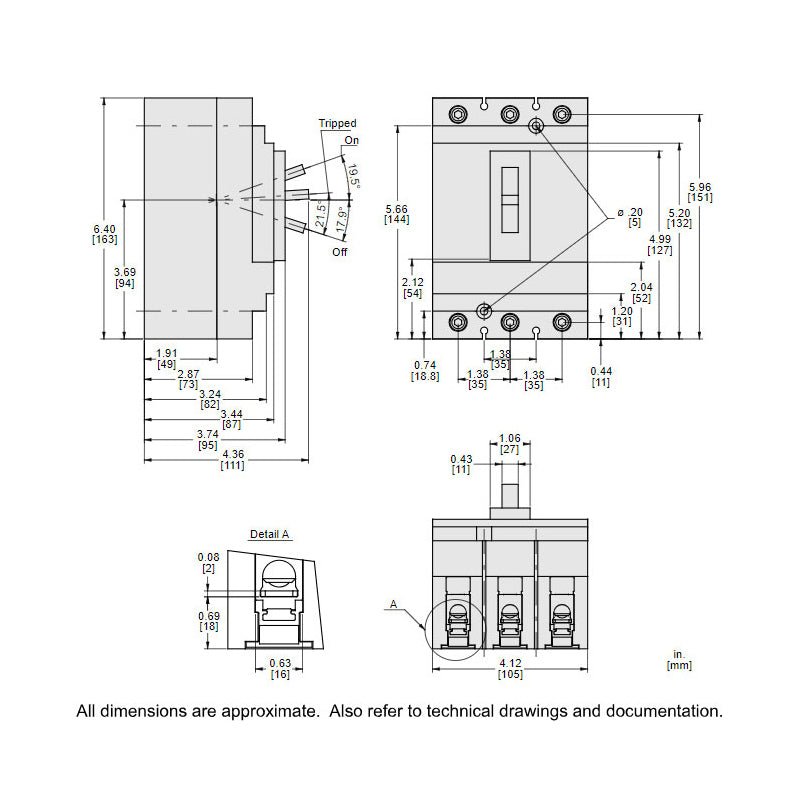

Dimensions

  • Dimensions (HxWxD):

    6.4″ x 4.12″ x 4.36″

  • Weight:

    4.85 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    70 A

  • Mounting Mode:

    Unit Mount Lug

  • Breaking Capacity Code

    G

  • Electrical Connection:

    Lugs line / Lugs load

  • Magnetic Hold Current:

    800 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 3/0 aluminium/copper terminal

Product Description – HGL36070 – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type HGL, 3P, 3PH, 70A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specification
