HJA260202 – Square D – Molded Case Circuit Breaker

SKU HJA260202 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 566.99

HJA260202 – Square D – Molded Case Circuit Breaker

SKU HJA260202 Category
Thumb

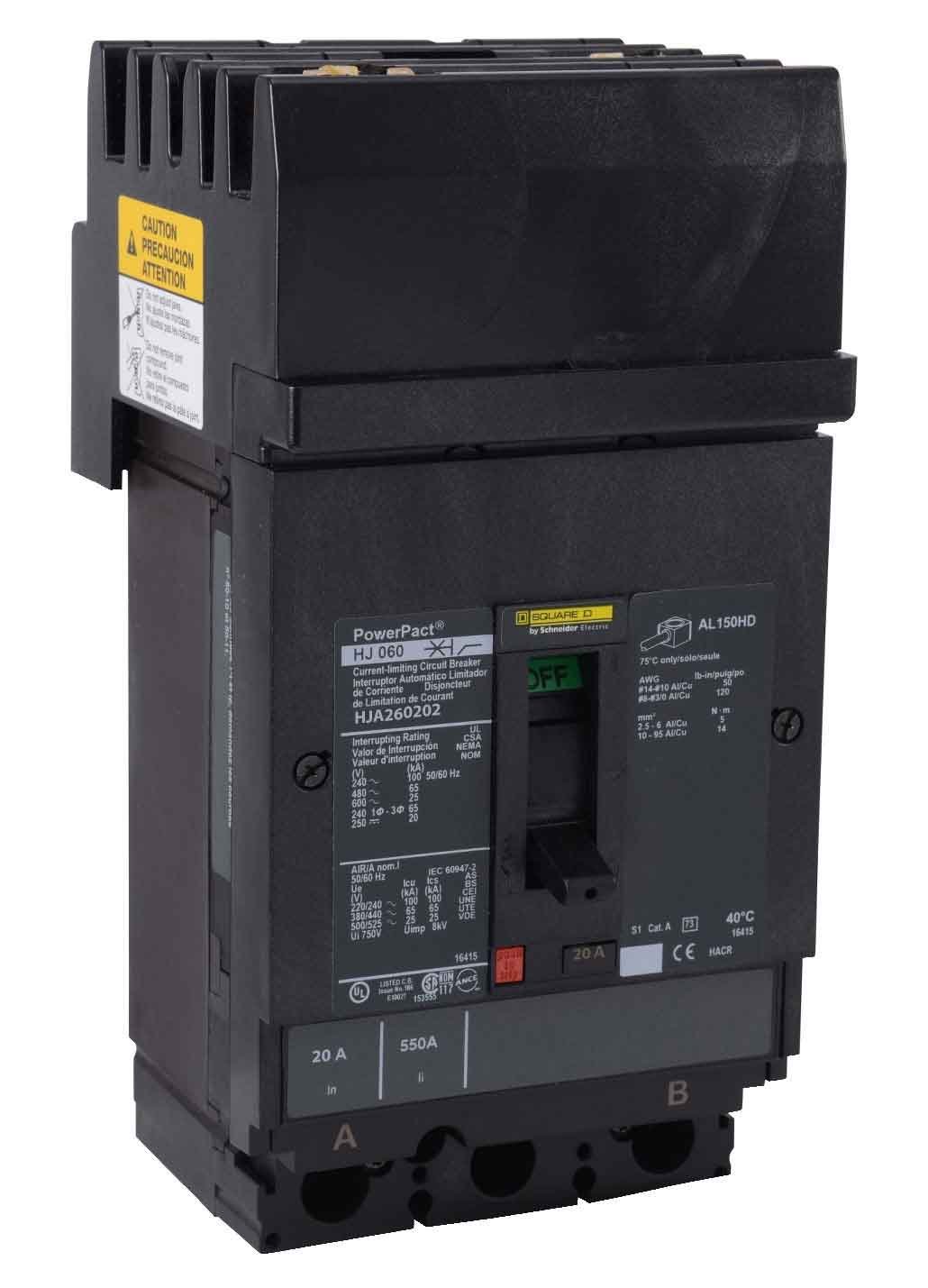

Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 566.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HJA260202 – Square D Molded Case Circuit Breakers

  • Part Number:

    HJA260202

  • Manufacturer:

    Square D

  • Family:

    Powerpact

  • Pole:

    2

  • Amp

    20

  • Volt:

    600

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HJA

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.73″ x 2.94″ x 4.8″

  • Weight:

    4.85 lbs

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    20 Amp

  • Magnetic Hold Current:

    350 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code:

    G

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 3/0 aluminium/copper terminal

Standards

CSA Approved logo

Product Description – HJA260202 – Square D Molded Case Circuit Breakers

Square D, Powerpact, type HJA, 1PH, 2P, A & C phase connection, 20A, 600V, 65kA@480V, current limiting, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
