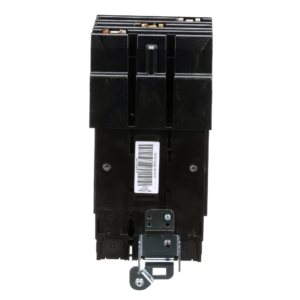

HLA36080 – Square D – Molded Case Circuit Breaker

SKU HLA36080 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 3,243.00.Current price is: $ 839.99.

HLA36080 – Square D – Molded Case Circuit Breaker

SKU HLA36080 Category
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 3,243.00.Current price is: $ 839.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HLA36080 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HLA

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    100kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.73″ x 4.48″ x 4.36″

  • Weight:

    4.85 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    80 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code:

    L

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Magnetic Hold Current:

    800 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 3/0 aluminium/copper terminal

Product Description – HLA36080 – Square D Powerpact Circuit Breaker

Square D, Powerpact, type HLA, 3PH, 3P, ABC phase connection, 80A, 600V, 100kA@480V, current limiting, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specification

You may also like

Related products

Customers Also Bought

02536ET3E284TS-W22 WEG Motor (25 HP, 284TS FRAME, 460 V, THREE PHASE, TEFC , 3535 RPM)
02536ET3E284TS-W22 WEG Motor (25 HP, 284TS FRAM...
SKU: WEG-2855
In stock
Original price was: $ 3,897.40.Current price is: $ 3,035.10.
102914.00 Leeson Motors (C4C17NH9, 1/4 HP, 56 Frame, 1725RPM, 115/208-230V, TENV)
102914.00 Leeson Motors (C4C17NH9, 1/4 HP, 56...
SKU: LEESON-0252
In stock
$ 0.00
THQB2135 - GE - 35 Amp Circuit Breaker
THQB2135 – GE – 35 Amp Circuit Breaker
SKU: thqb2135
In stock
Original price was: $ 37.99.Current price is: $ 11.99.
HO60P2SLG U.S. Motors Vertical Holloshaft, High Thrust Motor (60 HP, 3 Phase, 1800 RPM, 460 V)
HO60P2SLG U.S. Motors Vertical Holloshaft, High...
SKU: USMOTORS-0842
In stock
$ 9,110.52

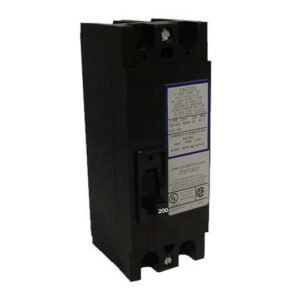

TMQD22200 - General Electrics - Molded Case Circuit Breakers
