HOM115CAFI – Square D Homeline – Arc Fault (AFCI) Circuit Breaker

SKU HOM115CAFI Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 48.99.Current price is: $ 36.99.

HOM115CAFI – Square D Homeline – Arc Fault (AFCI) Circuit Breaker

SKU HOM115CAFI Category
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 48.99.Current price is: $ 36.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HOM115CAFI – Square D Homeline Arc Fault (AFCI) Circuit Breaker

  • Category:

    Molded Case Circuit Breakers / 1-Pole

  • Connection:

    Plug-In

  • Type:

    HOM

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    10kA@120V

Dimensions

  • Dimensions (HxWxD):

    3.13 x 1 x 2.98

  • Weight:

    1.1 lbs

Standards

CSA Approved logo

Product Description – HOM115CAFI – Square D Homeline Arc Fault (AFCI) Circuit Breaker

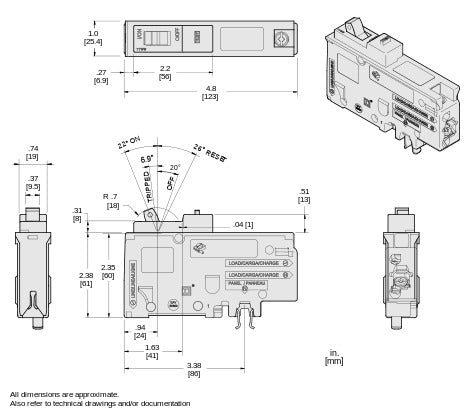

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a pigtail neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

You may also like

Related products

Customers Also Bought

VEM31158 Baldor General Purpose C-Face Motor (3 HP, 3600 RPM, 3 Phase, 56C Frame, ODP, 230/460 Voltage, Footless)
VEM31158 Baldor General Purpose C-Face Motor (3...
SKU: BALDOR-0678
In stock
Original price was: $ 1,377.50.Current price is: $ 928.10.
EDB26035 - Square D - Molded Case Circuit Breaker
EDB26035 – Square D – Molded Case C...
SKU: MOLDED-3791
In stock
$ 170.99
UJ3P1DM U.S. Motors Close Coupled Pump Motor (3 HP, 208-230/460V, 3PH)
UJ3P1DM U.S. Motors Close Coupled Pump Motor (3...
SKU: USMOTORS-0967
In stock
$ 879.83
CDX2001 Baldor Shunt Wound SCR Drive Motor (1 HP, 180 VDC, Explosion Proof , 1750 RPM)
CDX2001 Baldor Shunt Wound SCR Drive Motor (1 ...
SKU: BALDOR-1426
In stock
Original price was: $ 9,667.50.Current price is: $ 6,513.49.
Honda EB6500X 6,500 Watt 120/240V Gas Industrial Portable Gas Generator
Honda EB6500X 6,500 Watt 120/240V Gas Industria...
SKU: EB6500X1AN
In stock
$ 3,598.80

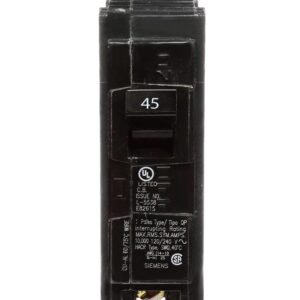

Q145 - Siemens - 45 Amp Circuit Breaker
