HOM235CP – Square D Homeline – Circuit Breaker

SKU HOM235CP Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 21.99

HOM235CP – Square D Homeline – Circuit Breaker

SKU HOM235CP Category
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 21.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HOM235CP – Square D Homeline Circuit Breaker

  • Category:

    Molded Case Circuit Breakers / 2-Pole

  • Connection:

    Plug-In

  • Type:

    HOM

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    10kA@240V

Dimensions

  • Dimensions (HxWxD):

    3.75 x 2 x 2.5

  • Weight:

    0.7 lbs

Standards

CSA Approved logo

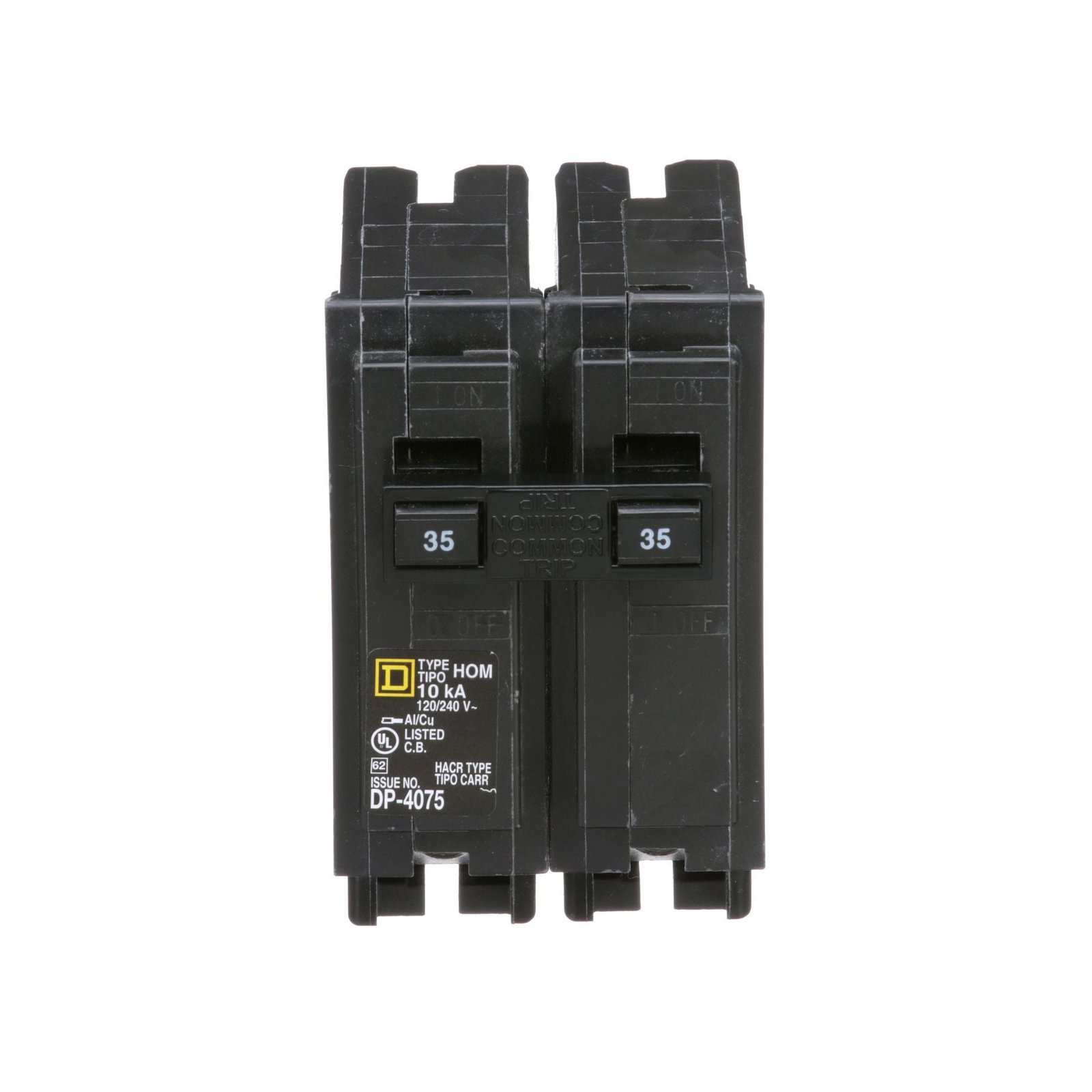

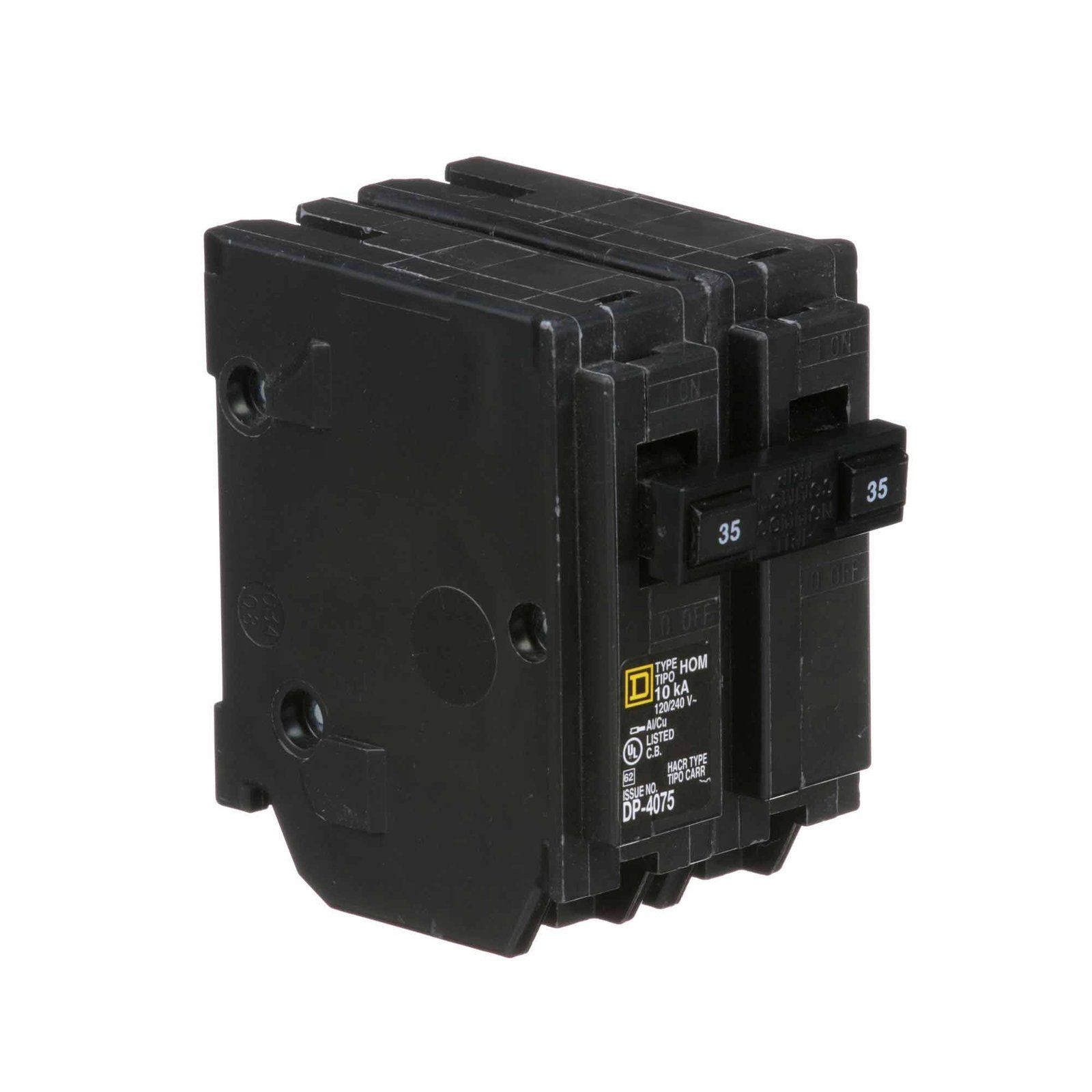

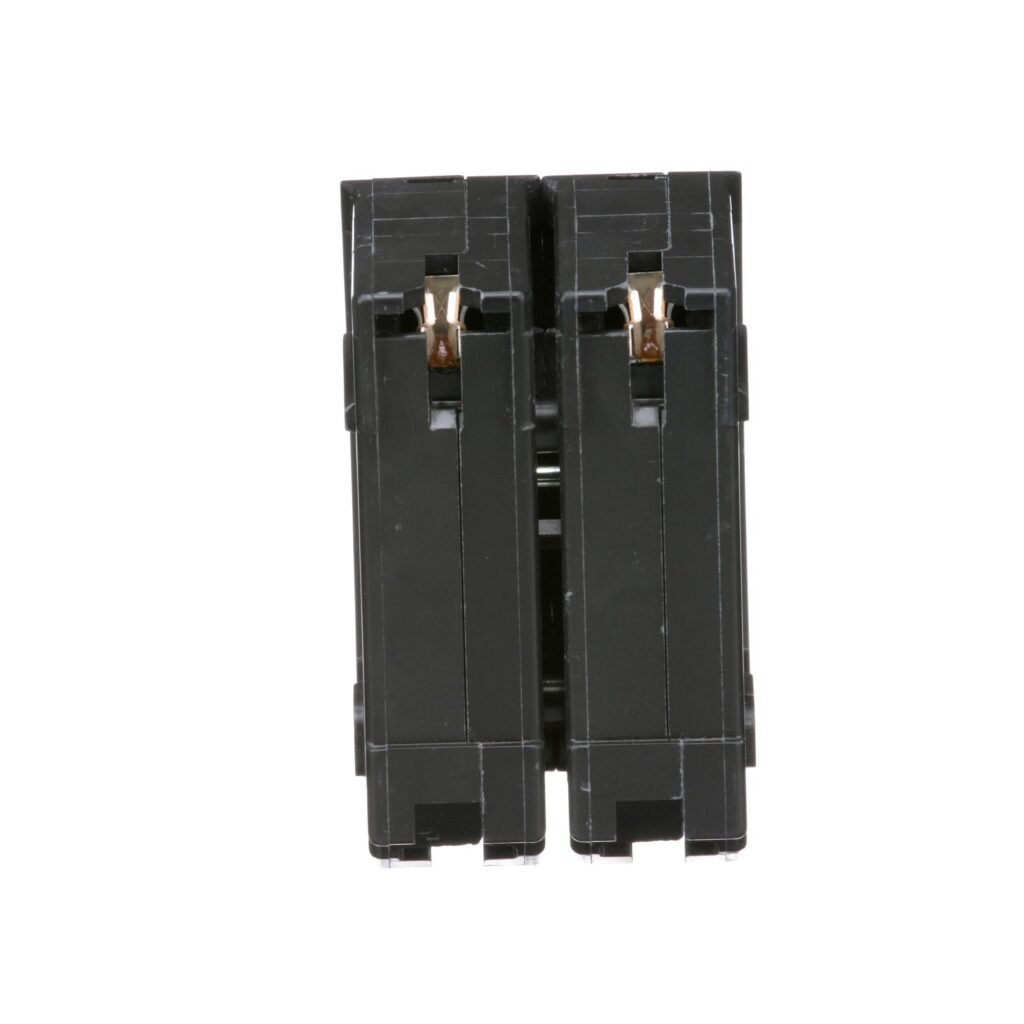

Product Description – HOM235CP – Square D Homeline Circuit Breaker

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 35A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
