HOMT1515225 – Square D Homeline – Quad Circuit Breaker

SKU HOMT1515225 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 69.99

HOMT1515225 – Square D Homeline – Quad Circuit Breaker

SKU HOMT1515225 Category
Thumb
Thumb
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 69.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HOMT1515225 – Square D Homeline Quad Circuit Breaker

  • Category:

    Molded Case Circuit Breakers / 4-Pole

  • Connection:

    Plug-In

  • Type:

    HOMT

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    10kA@240V

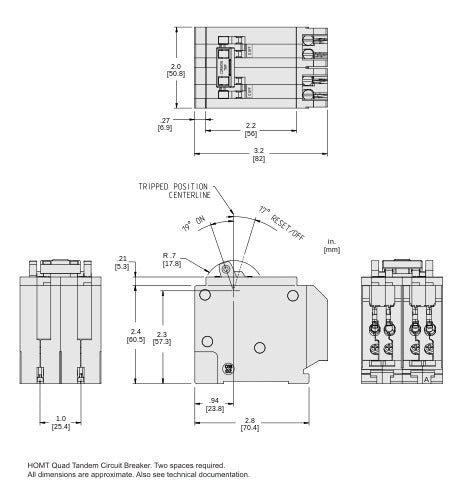

Dimensions

  • Dimensions (HxWxD):

    3.13 x 2 x 3

  • Weight:

    1.1 lbs

Standards

CSA Approved logo

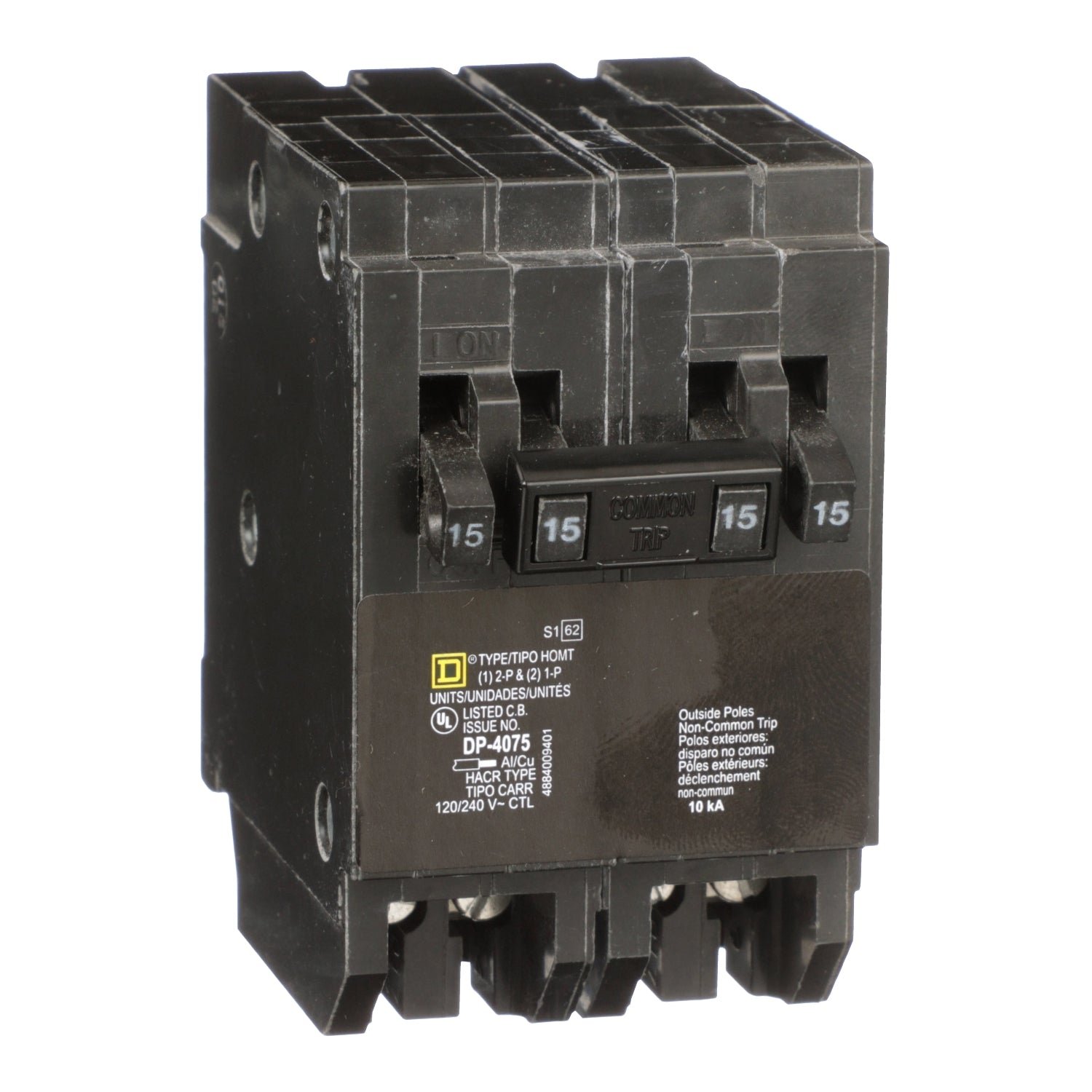

Product Description – HOMT1515225 – Square D Homeline Quad Circuit Breaker

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 25A at 120/240 VAC and the single pole breakers are rated 15A and 15A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.
