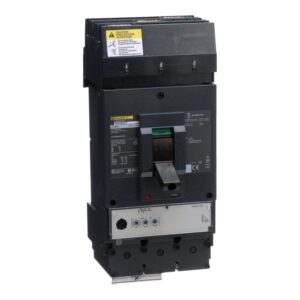

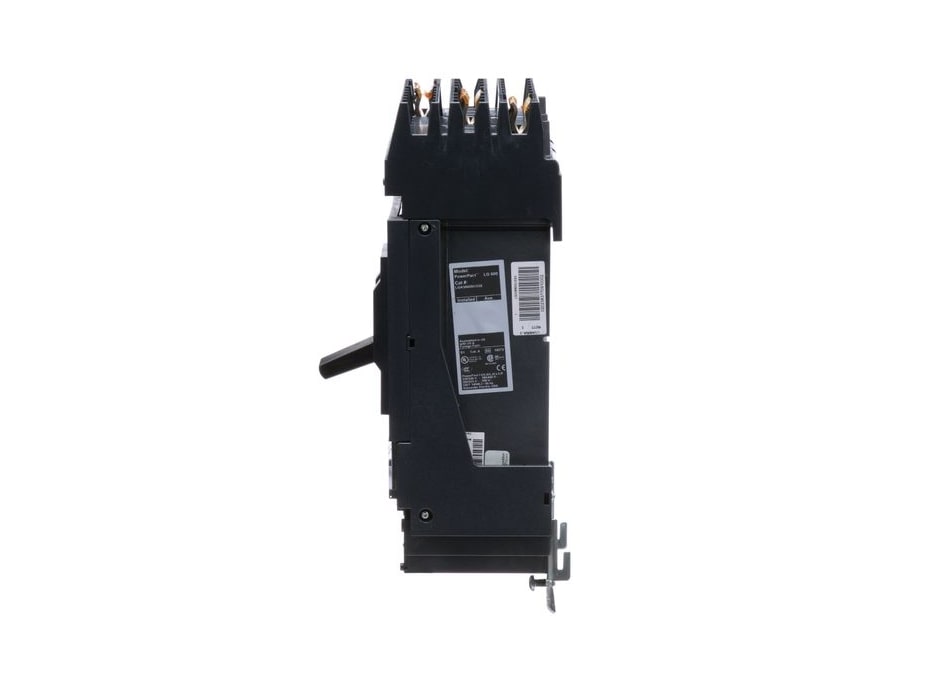

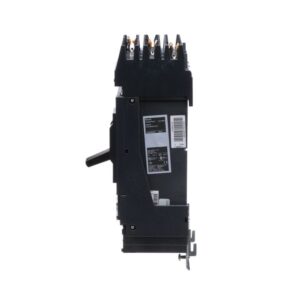

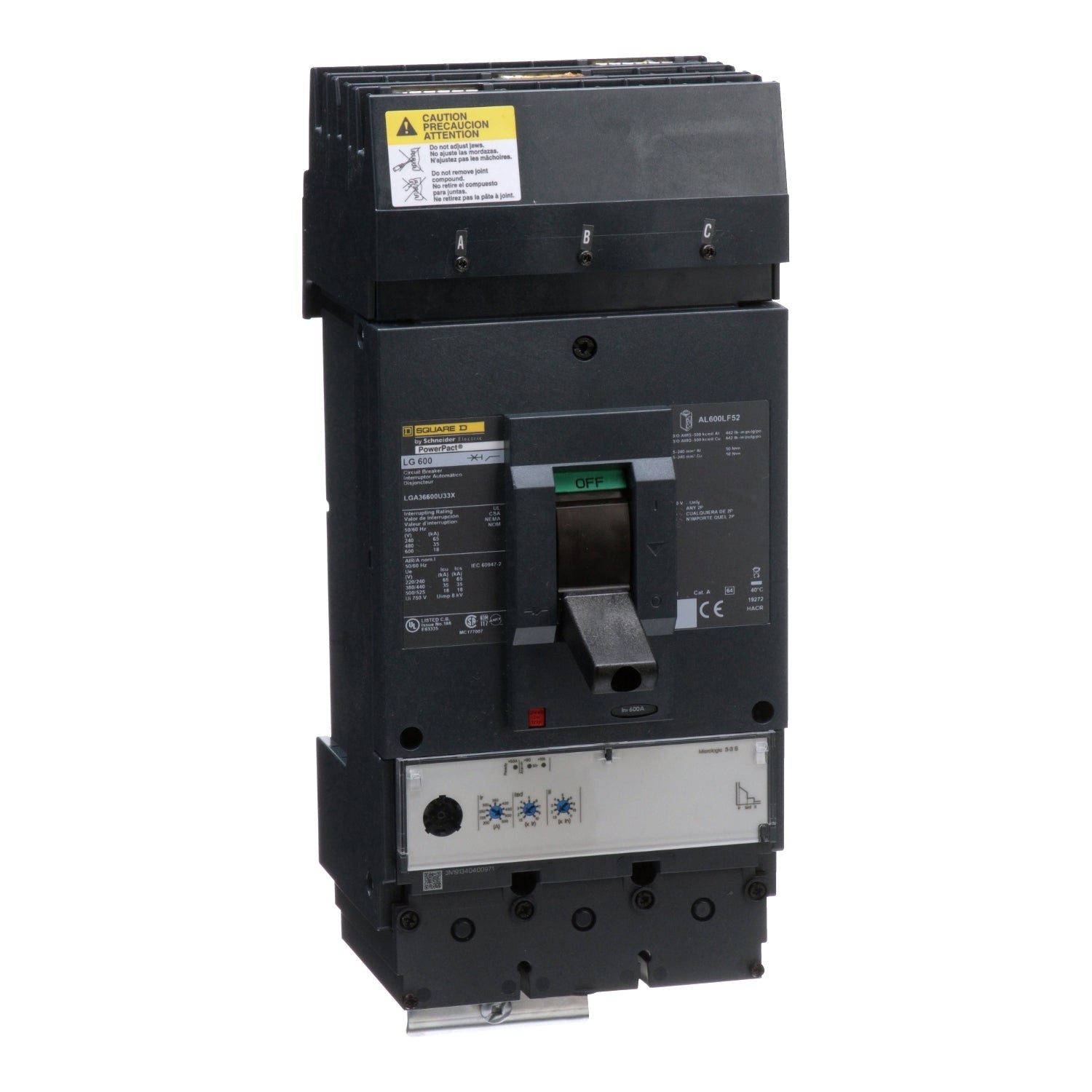

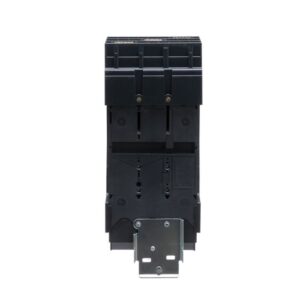

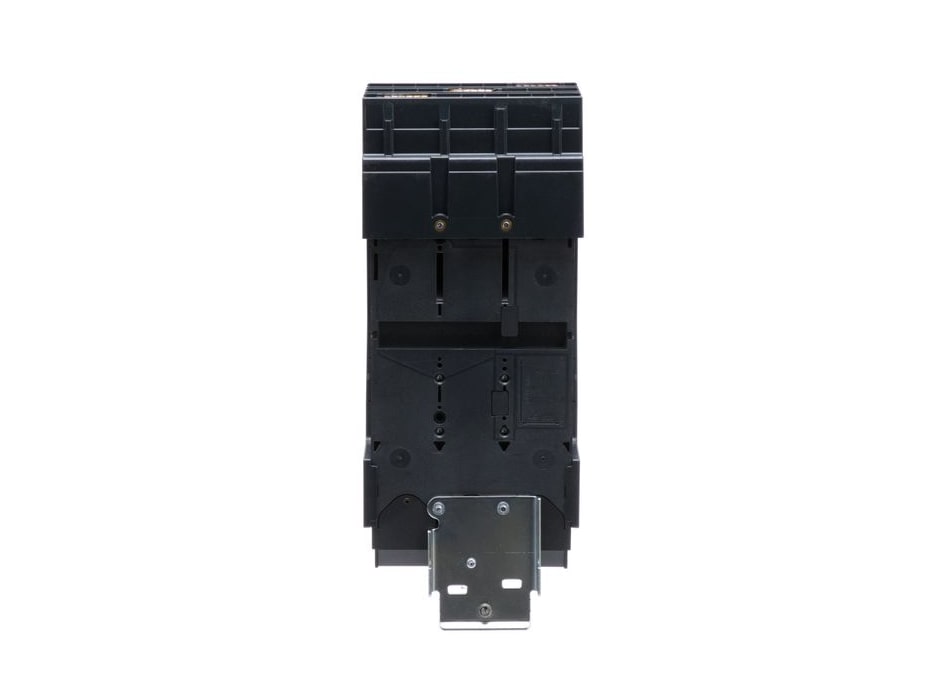

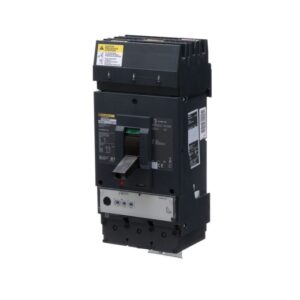

LGA36600U33X – Square D – Molded Case Circuit Breaker

SKU MOLDED-2553 Category Tags , , , , ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $8,372.00.Current price is: $4,199.99.

LGA36600U33X – Square D – Molded Case Circuit Breaker

SKU MOLDED-2553 Category Tags , , , , ,
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $8,372.00.Current price is: $4,199.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – LGA36600U33X – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    LGA

  • Functions:

    LSI – Long-Time, Short-Time and Instantaneous

  • Protection:

    Solid State

  • Frame Type:

    L Frame

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    13.39″ x 5.51″ x 4.33″

Standards

CSA Approved logo

Additional Details

  • Trip Unit Technology:

    Electronic, standard, MicroLogic 3.3, LI

  • Line Rated Current:

    600 Amp

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    G

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    2 x AWG 2/0…500 kcmil aluminium/copper

Product Description – LGA36600U33X – Square D Powerpact Circuit Breaker

Square D,Schneider Electric, Powerpact, type LGA, 3P, 3PH, 600A, 600V, 35kA@480V, UL listed, standard interrupting capacity, i-line style plug-in, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip, LSI – Long-Time, Short-Time and Instantaneous trip functions, solid state electronic.

Documentation

PDF Icon Catalogue

PDF Icon Data Sheet

You may also like

Related products

Customers Also Bought

00312ET3E213T-SG WEG Motor (3 HP, 1200 RPM, Thr...
SKU: WEG-1957
In stock
Original price was: $1,537.90.Current price is: $1,197.64.

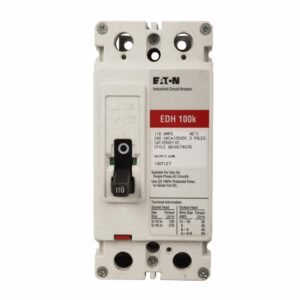

EDH2150L – Eaton – Molded Case Circ...
SKU: EDH2150L
In stock
$408.99
BQ3B01500S01 – Siemens – 15 Amp Shu...
SKU: BQ3B01500S01
In stock
Original price was: $829.00.Current price is: $159.99.

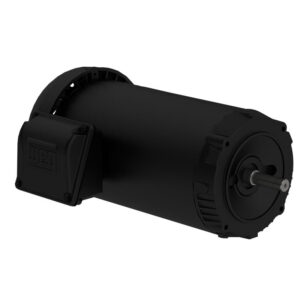

.5036ES3E56CFL-S WEG Motor (0.5 HP, 3600 RPM, 3...
SKU: WEG-1628
In stock
Original price was: $366.60.Current price is: $285.49.
Cummins C100D6C 100kW Diesel Generator (A063P987)
In stock
$34,999.99
IDM4110T Baldor AC Inverter/Vector Duty Motor (...
SKU: BALDOR-0570
In stock
Original price was: $14,576.25.Current price is: $11,169.05.

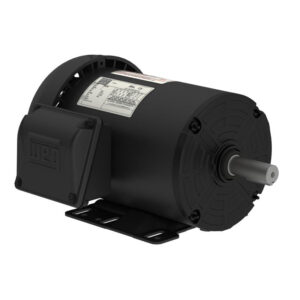

00218EG3EL145T-W22 WEG General Purpose Severe D...
SKU: WEG-0362
In stock
Original price was: $874.90.Current price is: $681.33.
HDA260801 – Square D – Molded Case ...
SKU: HDA260801
In stock
$461.99

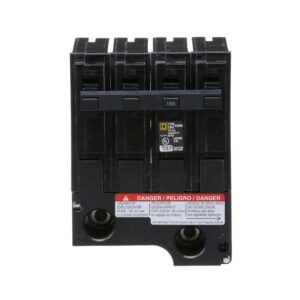

HOM2150BB – Square D Homeline – Cir...
