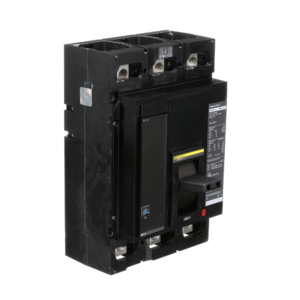

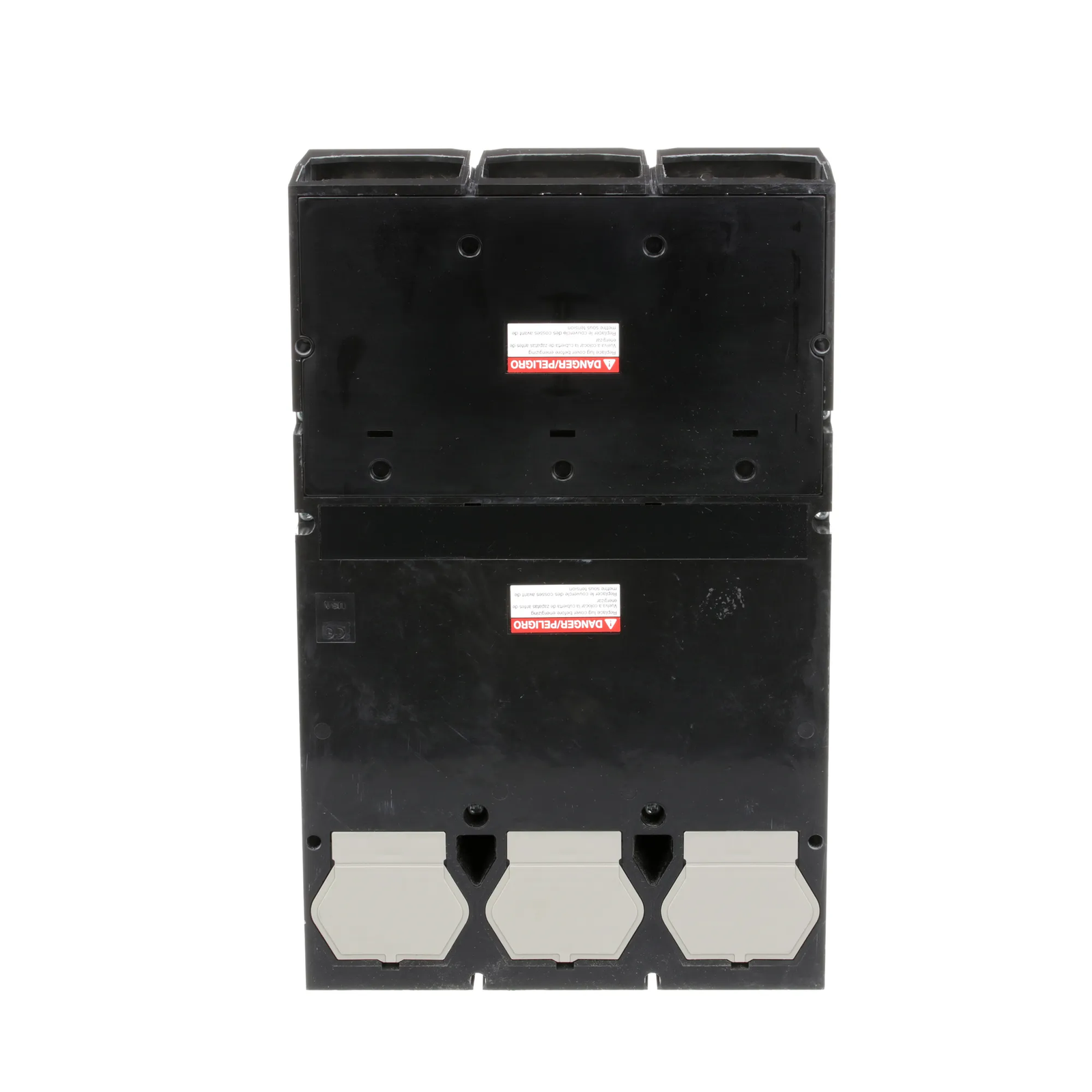

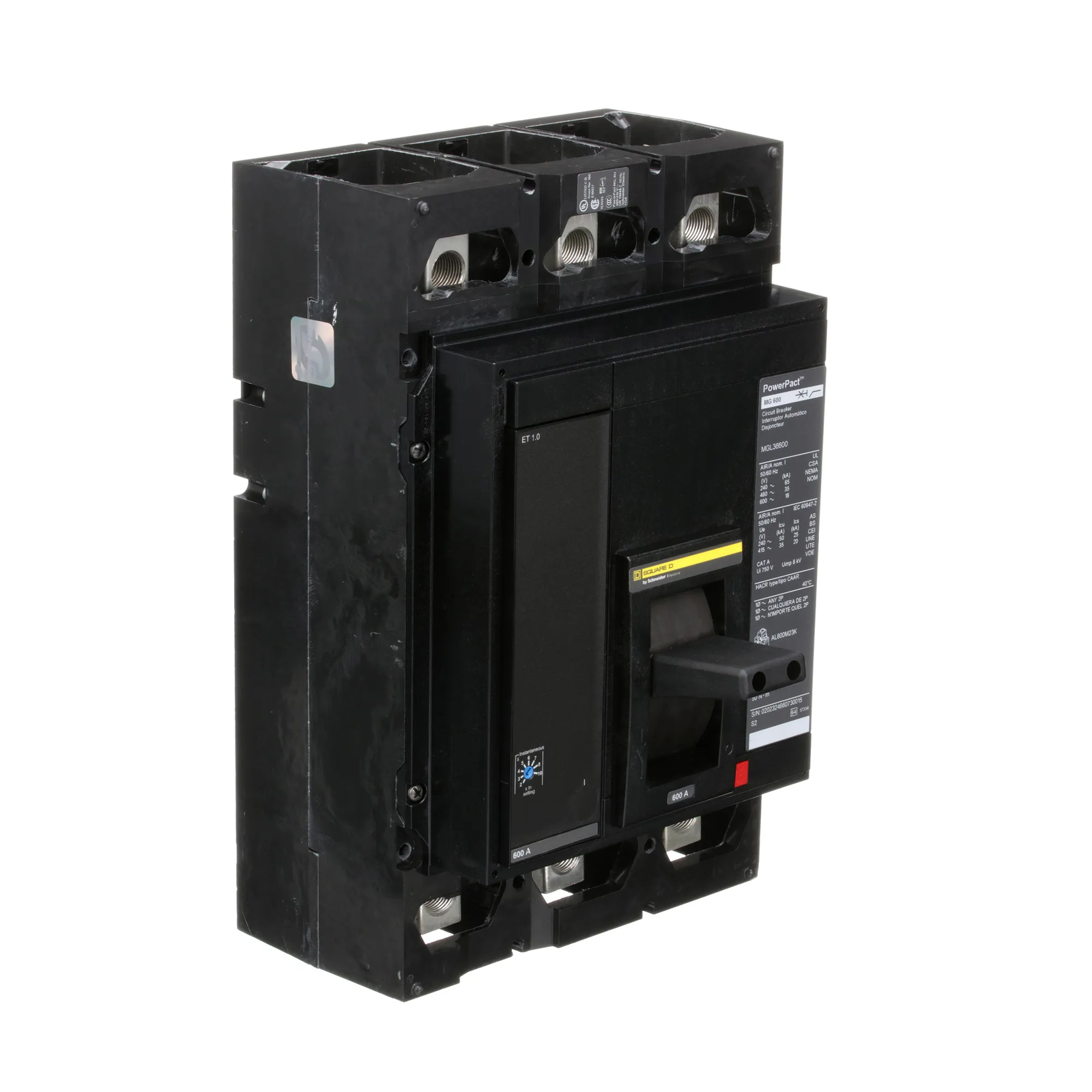

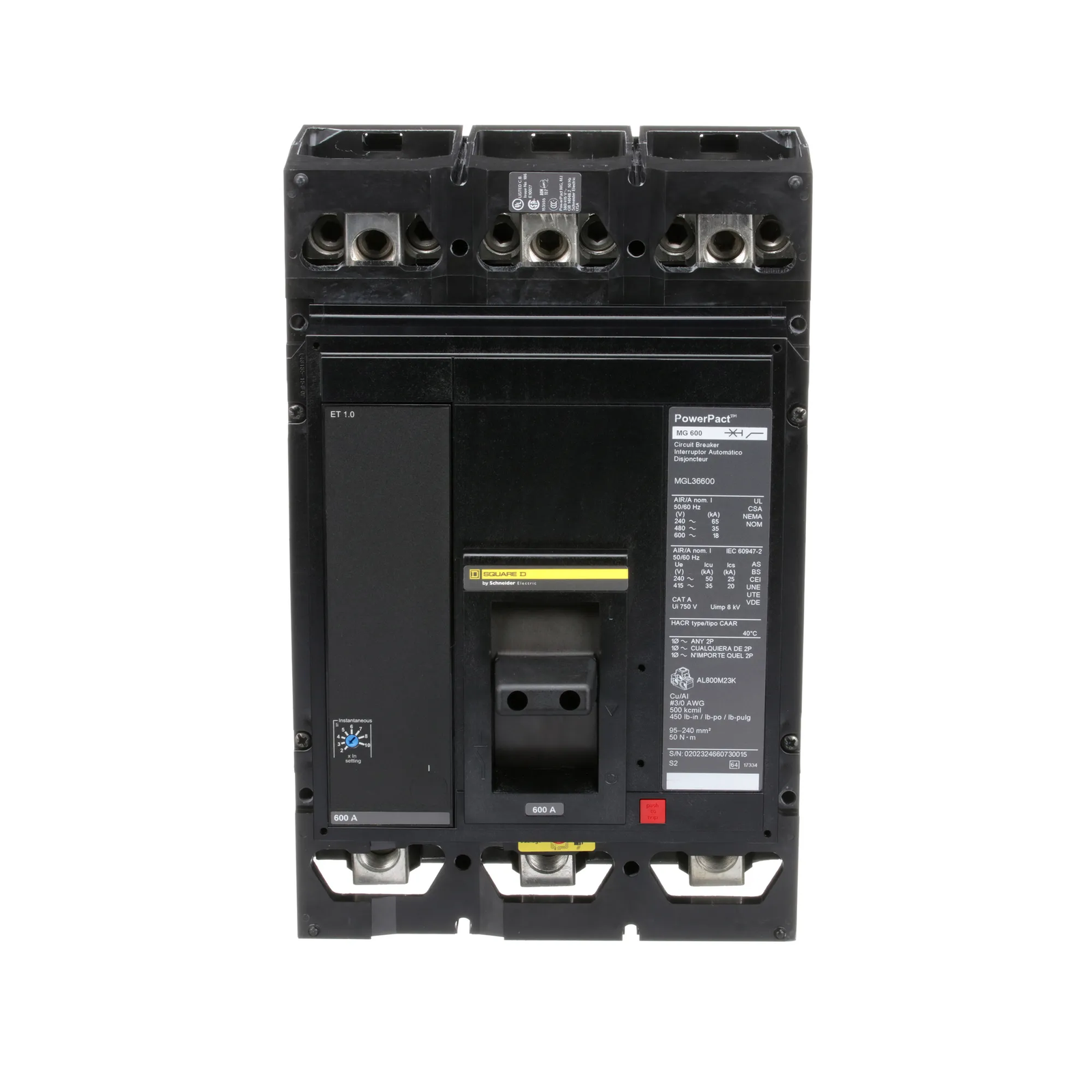

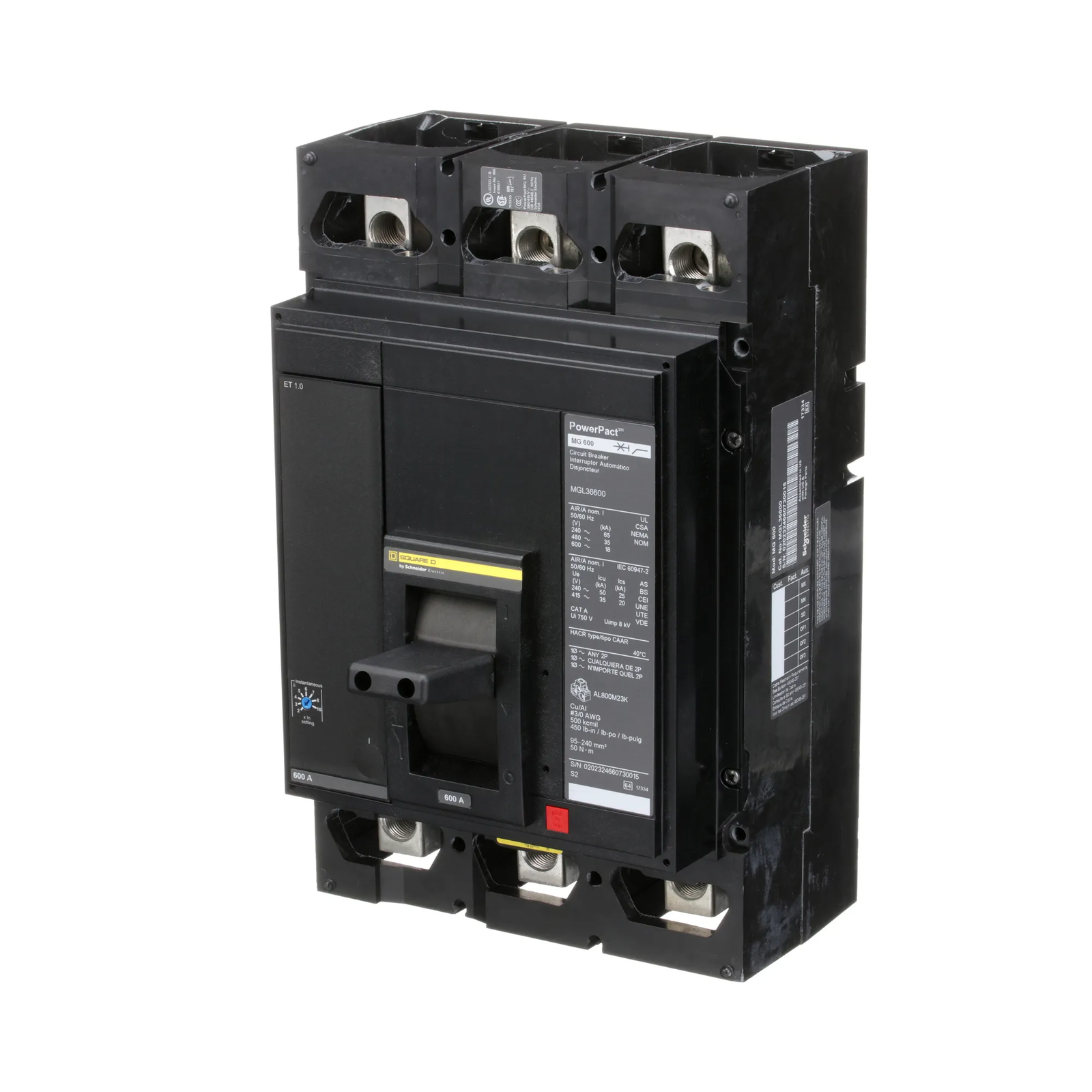

MGL36600 – Square D – Molded Case Circuit Breaker

SKU MOLDED-0943 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 7,560.00.Current price is: $ 3,779.99.

MGL36600 – Square D – Molded Case Circuit Breaker

SKU MOLDED-0943 Category
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 7,560.00.Current price is: $ 3,779.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – MGL36600 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    MGL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    12.86″ x 0.32″ x 8.27″

  • Weight:

    29 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    M-Frame

  • Trip Unit Technology:

    Electronic, basic, ET 1.0,

  • Line Rated Current:

    600 Amp

  • Mounting Mode:

    Unit Mount Lug

  • Breaking Capacity Code:

    G

  • Electrical Connection:

    Lugs line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Operating Handle

  • AWG Gauge:

    3 x AWG 3/0…3 x 500 kcmil aluminium/copper

Product Description – MGL36600 – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type MGL, 3P, 3PH, 600A, 600V, 35kA@480V, UL listed, high interrupting capacity, feed-thru, complete with basic non-interchangeable 1.0 trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Installation Instruction

PDF Icon Data Sheet
