Product Specifications – PDG22F0060TFFJ – Eaton Molded Case Circuit Breaker

Dimensions

Standards

Product Description – PDG22F0060TFFJ – Eaton Molded Case Circuit Breaker

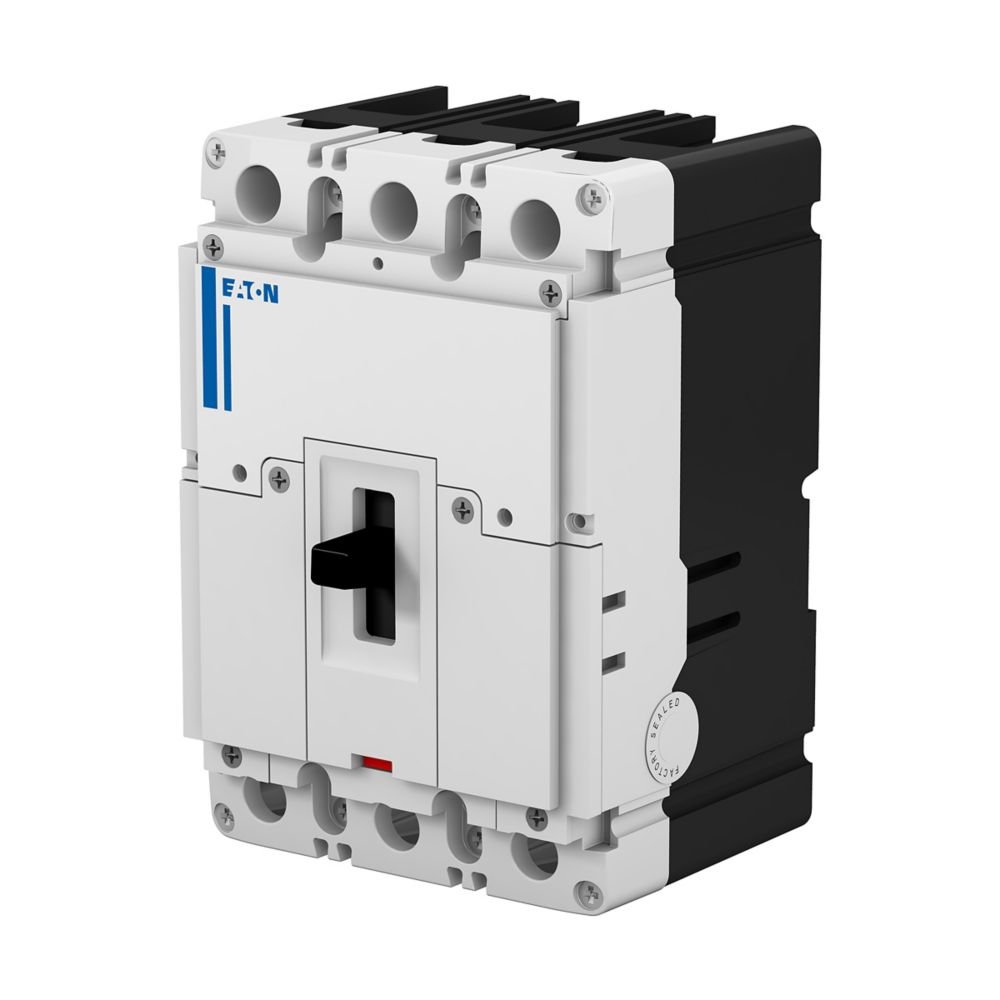

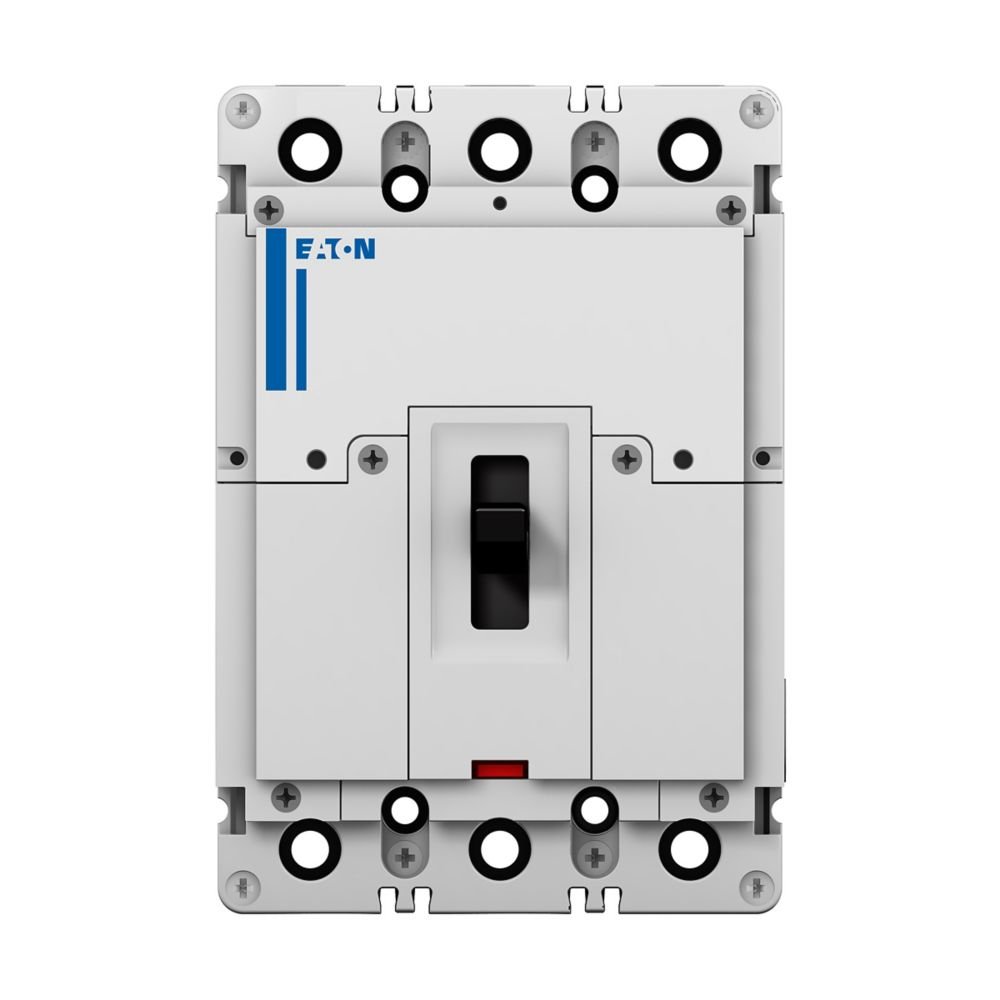

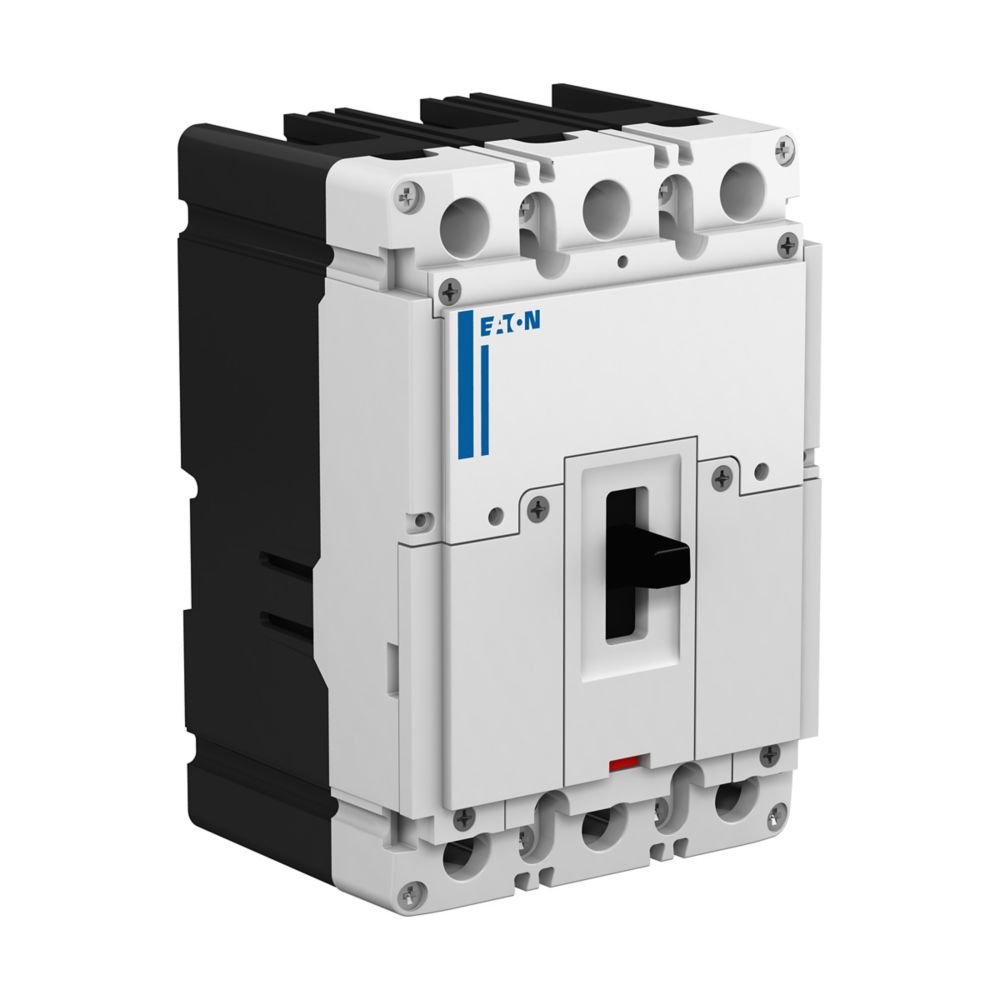

Eaton Power Defense Molded Case Circuit Breaker, Globally Rated, Frame 2, Two Pole, 60A, 25Ka/480V, T-M (Fxd-Fxd) Tu, Standard Line And Load (Pdg2X2T100)

Frame Size 2 covers a range of 15 A through 225 A with a complete offering of trip units, including PXR electronic trip units and fixed-fixed thermalmagnetic trip units.

Frame Size 2 can be used to meet a wide range of circuit protection and power distribution needs, including ground fault protection and current limiting options. PXR trip units in PD-2 provide all levels of protection, including energy metering with multiple communication schemes, breaker health indication, and zone selective interlocking with visual indication.

Frame Size 2 breakers are available in multiple ratings from 15 A through 225 A. They are configured with a trip unit from the factory. Accessories are modular in design to allow for field installation or factory configuration. PXR trip units are available with advanced features to provide customers unparalleled situational awareness of their electrical system.
