PJA36100U41A – Square D – Molded Case Circuit Breaker

SKU PJA36100U41A Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 22,845.00.Current price is: $ 7,172.99.

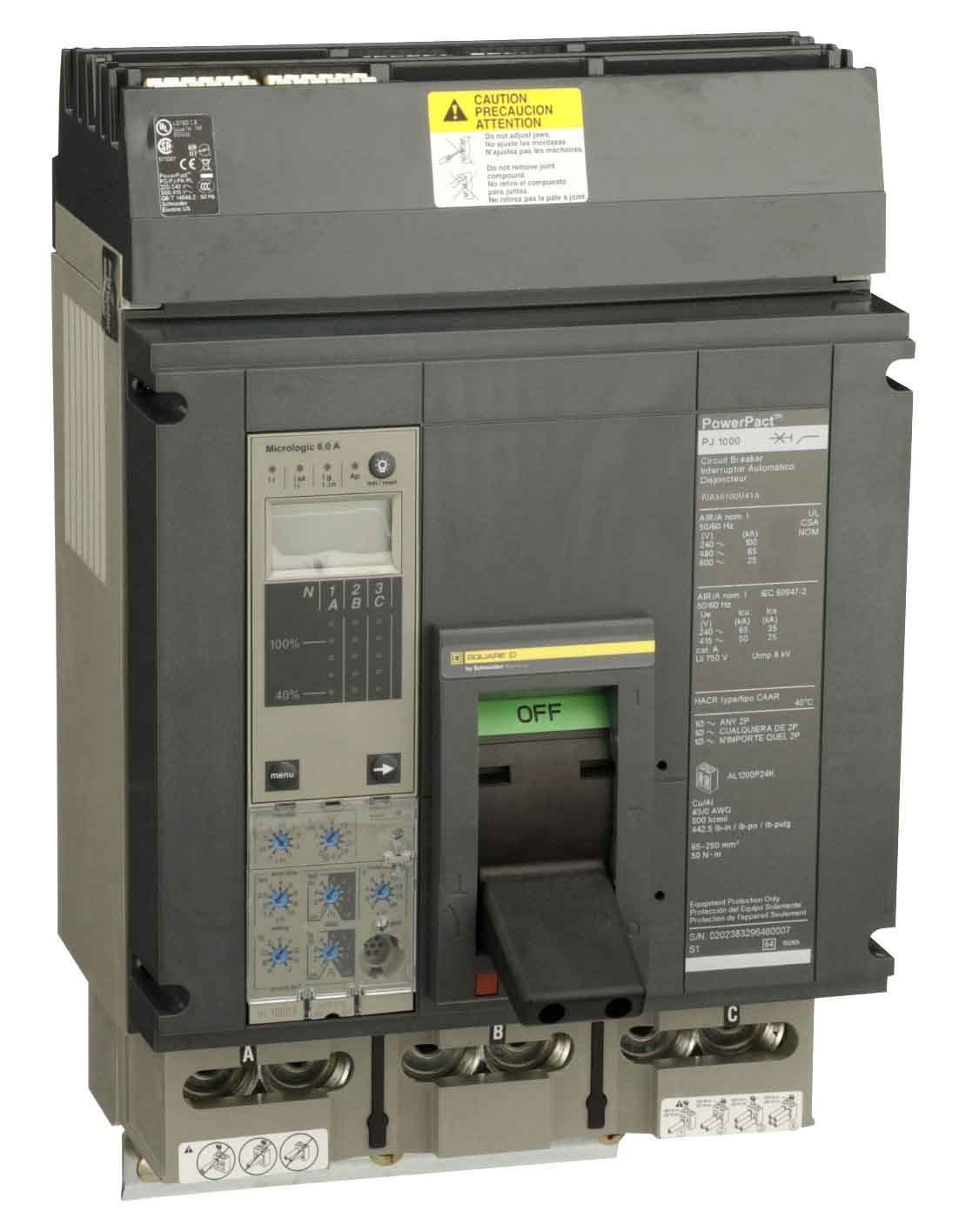

PJA36100U41A – Square D – Molded Case Circuit Breaker

SKU PJA36100U41A Category
Thumb
Thumb
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 22,845.00.Current price is: $ 7,172.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – PJA36100U41A – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    PJA

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    16.16″ x 8.27″ x 8.05″

  • Weight:

    32 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    P-Frame

  • Trip Unit Technology:

    Electronic, ammeter, MicroLogic 3.0 A, LI

  • Line Rated Current:

    1000 Amp

  • Breaking Capacity Code:

    J

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    4 x AWG 3/0…500 kcmil aluminium/copper

Product Description – PJA36100U41A – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type PJA, 3P, ABC phase connection, 3PH, 1000A, 600V, 65kA@480V, UL listed, high interrupting capacity, i-line style plug-in, complete with micrologic interchangeable ammeter 3.0A trip.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
