QBL22200 – Square D – Molded Case Circuit Breaker

SKU QBL22200 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 172.99

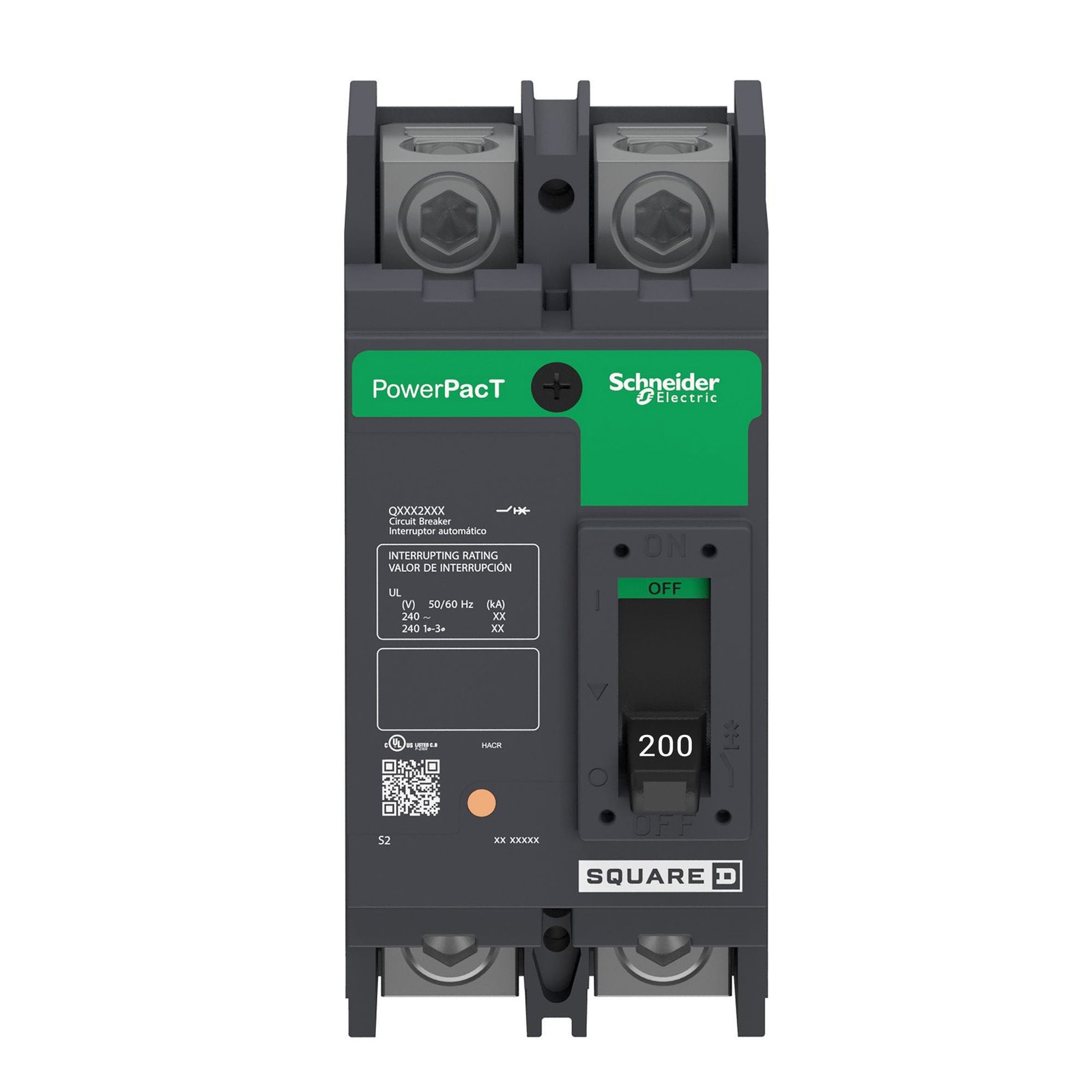

QBL22200 – Square D – Molded Case Circuit Breaker

SKU QBL22200 Category
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 172.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – QBL22200 – Square D Molded Case Circuit Breakers

  • Part Number:

    QBL22200

  • Manufacturer:

    Square D

  • Family:

    Powerpact

  • Pole:

    2

  • Amp

    200

  • Volt:

    240

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Feed-Thru

  • Type:

    QBL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    10kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.47″ x 3″ x 3.93″

Additional Details

  • Frame Type:

    Q-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    200 Amp

  • Magnetic Hold Current:

    1200 A

  • Mounting Mode:

    Unit Mount Lug

  • Breaking Capacity Code:

    B

  • Electrical Connection:

    Lugs line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Operating Handle

Standards

CSA Approved logo

Product Description – QBL22200 – Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type QBL, 2P, 1PH, 200A, 240V, 10kA@240V, UL listed, standard interrupting capacity, feed-thru, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
