QDL22070 – Square D – Molded Case Circuit Breaker

SKU QDL22070 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 349.99

QDL22070 – Square D – Molded Case Circuit Breaker

SKU QDL22070 Category
Thumb

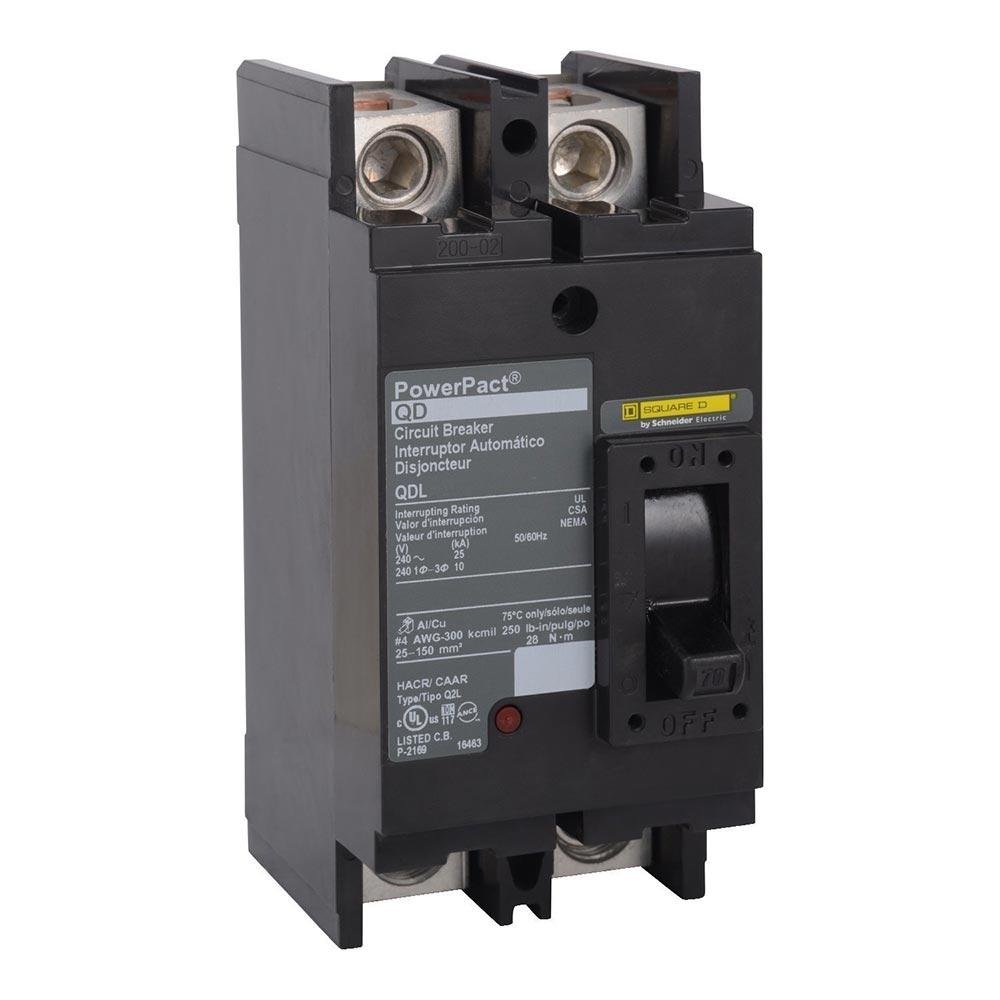

Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 349.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – QDL22070 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Feed-Thru

  • Type:

    QDL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    25kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.47″ x 3″ x 3.93″

  • Weight:

    4.9 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    Q-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    70 Amp

  • Mounting Mode:

    Unit mount lug

  • Breaking Capacity Code:

    D

  • Electrical Connection:

    Lugs load/Lugs line

  • Magnetic Hold Current:

    1000 Amp

  • Continuous Current Rating:

    80%

  • Control Type:

    Operating handle

Product Description – QDL22070 – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type QDL, 2P, 1PH, 70A, 240V, 25kA@240V, UL listed, standard interrupting capacity, feed-thru, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Installation Instructions
