QDP32100TM – Square D – 100 Amp Molded Case Circuit Breaker

SKU QDP32100TM Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 461.99

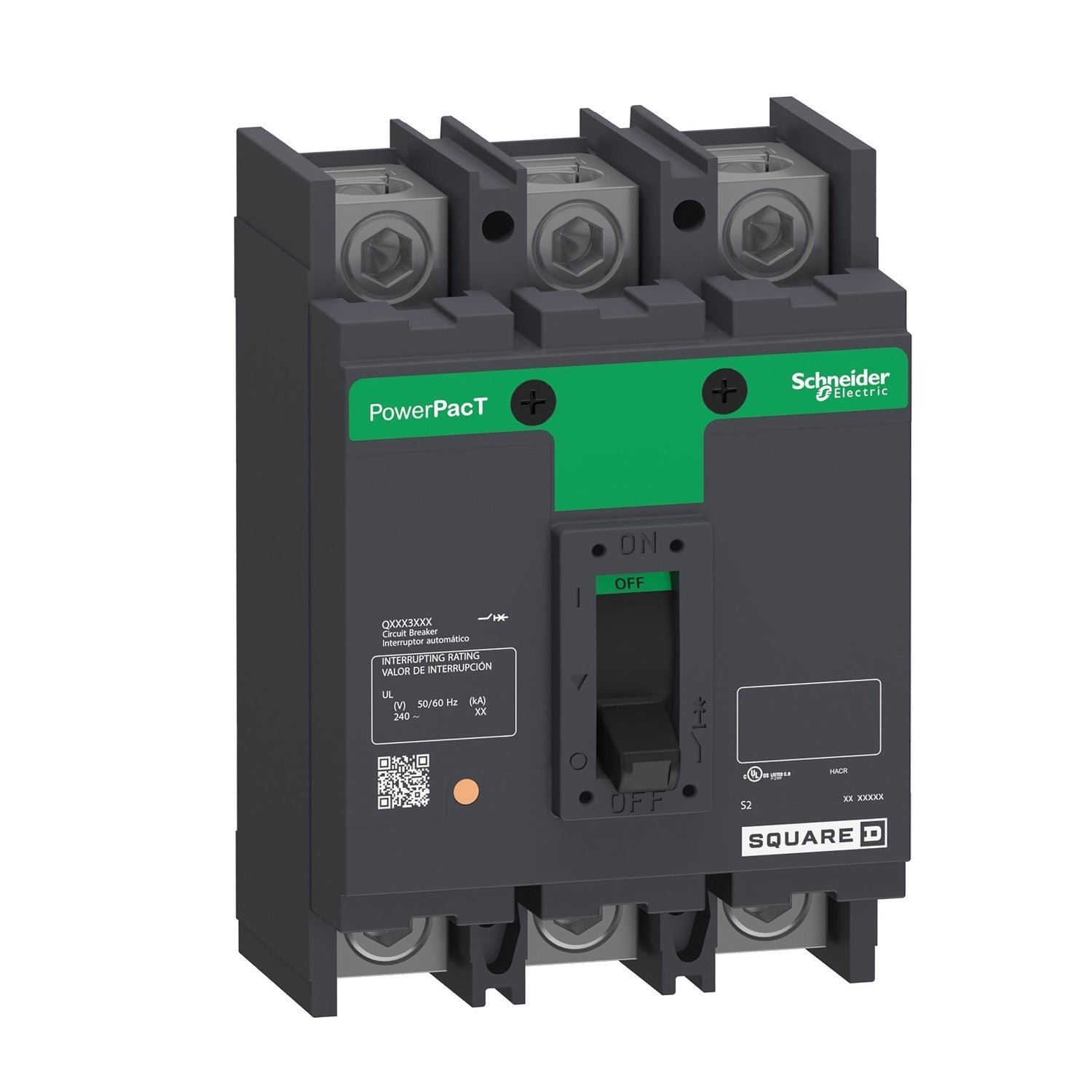

QDP32100TM – Square D – 100 Amp Molded Case Circuit Breaker

SKU QDP32100TM Category
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 461.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – QDP32100TM – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    QDP

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    25kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.47″ x 4.5″ x 3.93″

  • Weight:

    4.9 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    Q-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    100 Amp

  • Mounting Mode:

    Unit mount lug

  • Breaking Capacity Code:

    D

  • Electrical Connection:

    Terminal nut line/Lugs load

  • Magnetic Hold Current:

    1200 Amp

  • Continuous Current Rating:

    80%

  • Control Type:

    Operating handle

Product Description – QDP32100TM – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type QDP, 3P, 3PH, 100A, 240V, 25kA@240V, UL listed, standard interrupting capacity, bolt-on, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line side lug terminals, top feed main, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Installation Instructions
