QGA222004 – Square D – Molded Case Circuit Breaker

SKU QGA222004 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 651.99

QGA222004 – Square D – Molded Case Circuit Breaker

SKU QGA222004 Category
Thumb

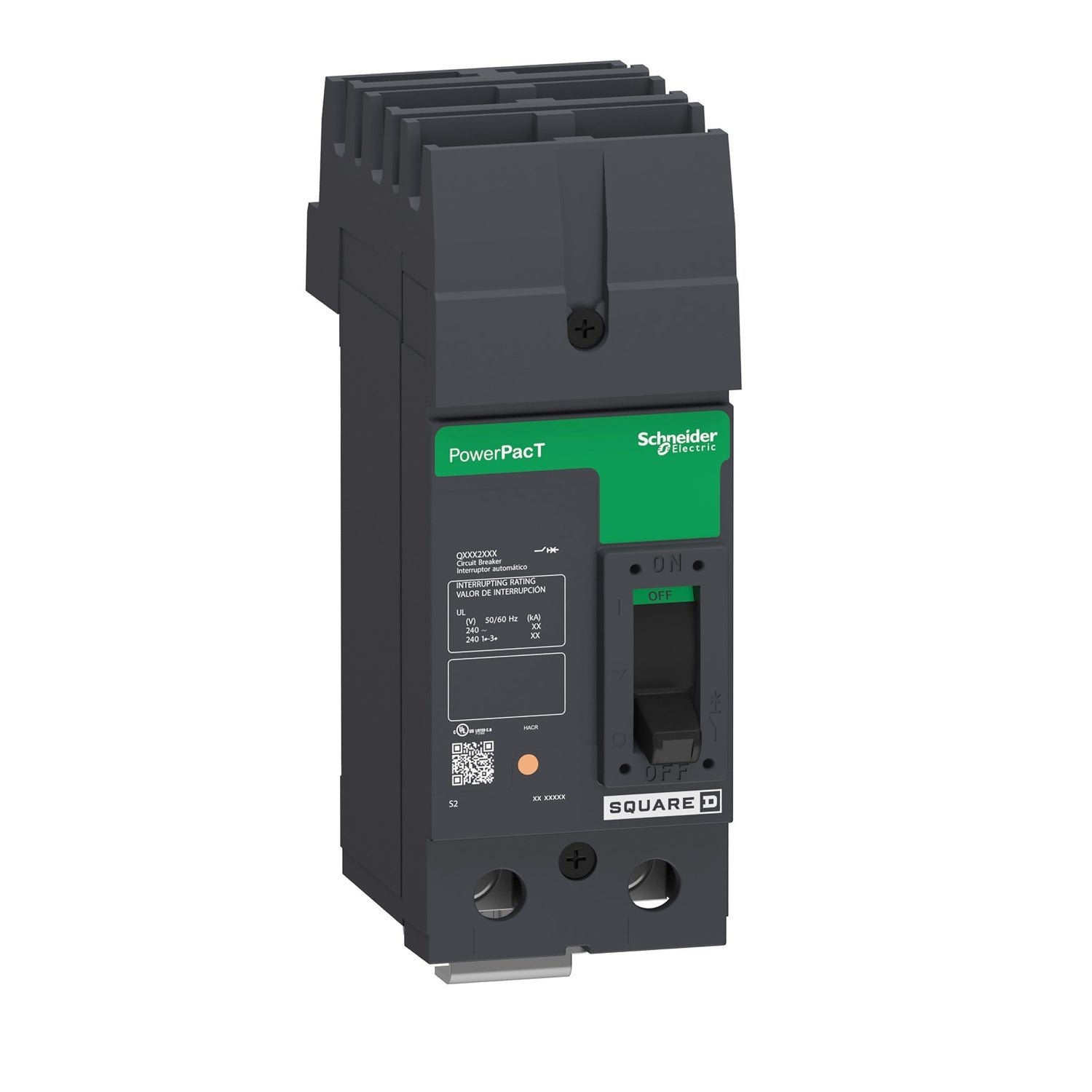

Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 651.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – QGA222004 – Square D I-Line Circuit Breaker

  • Category:

    Molded Case / 2-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    QGA

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    65kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.47″ x 3″ x 3.93″

  • Weight:

    4.9 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    Q-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    200 Amp

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code:

    G

  • Electrical Connection:

    TI-Line connection line/Lugs load

  • Magnetic Hold Current:

    1200 Amp

  • Continuous Current Rating:

    80%

  • Control Type:

    Operating handle

Product Description – QGA222004 – Square D I-Line Circuit Breaker

Square D, I-Line, type QGA, 2P, B & C phase connection, 1PH, 200A, 240V, 65kA@240V, UL listed, high interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Installation Instructions
