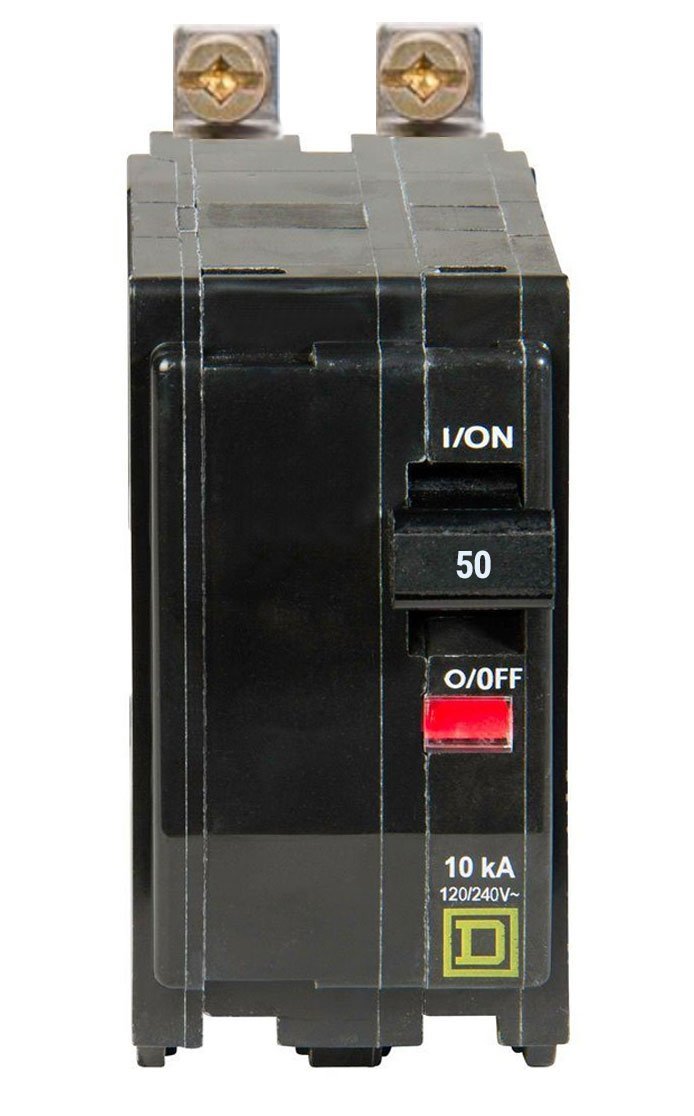

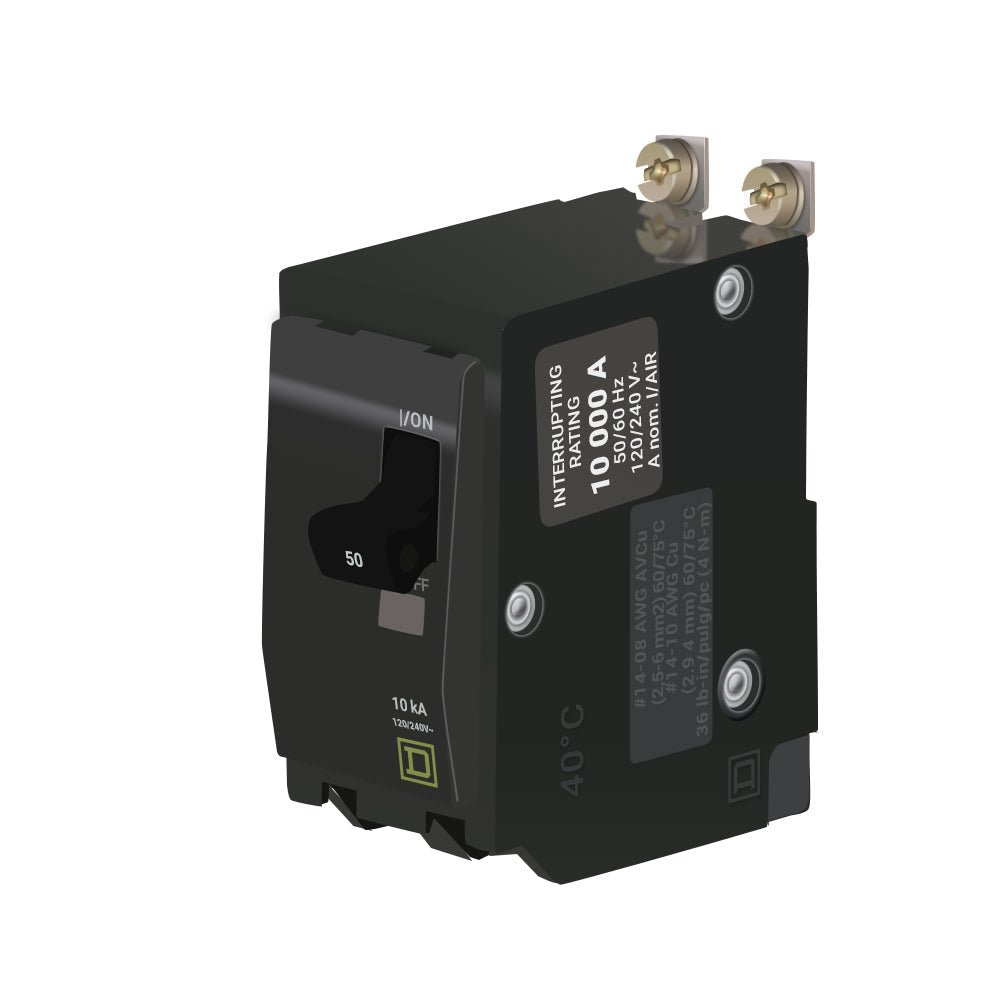

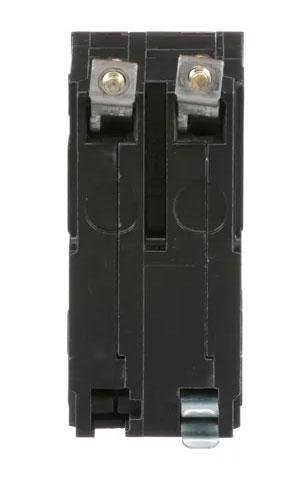

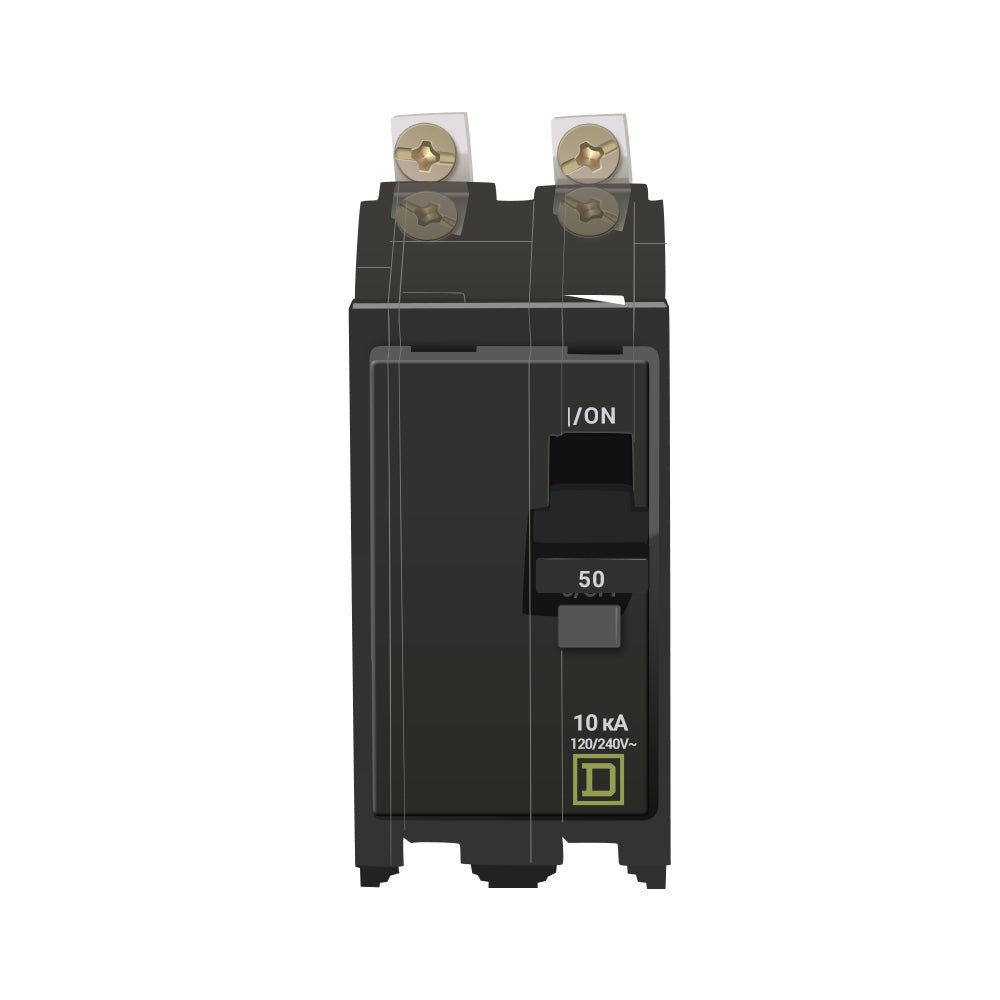

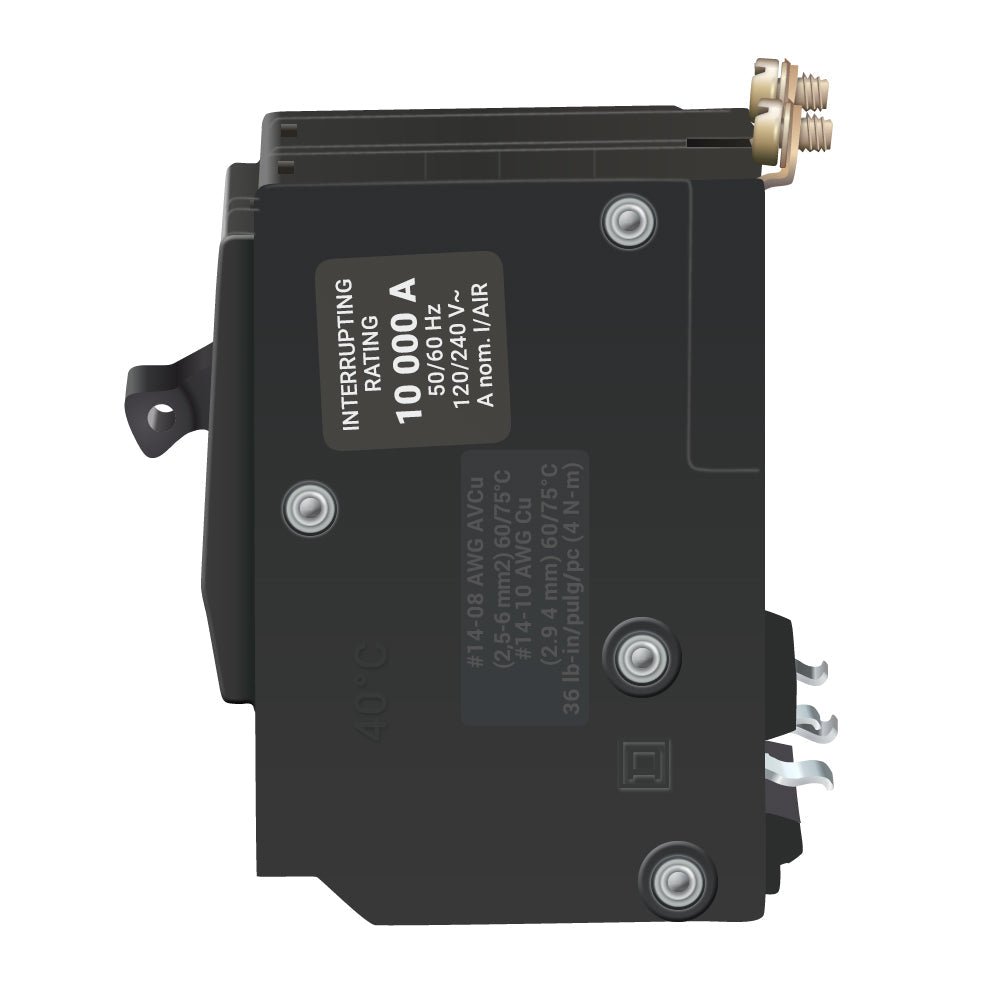

QOB250 – Square D Bolt-On 50 Amp Breaker

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 50 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 8 – 2 AWG.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 50 A
• System Voltage: 120 V AC, 120/240 V AC, 48 V DC
• Mounting Type: Bolt-on
• Number of Poles: 2P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Number of Panel Spaces: 2
• Wire Size: AWG 8…AWG 2 (copper or aluminium)
• Height: 3.12 in
• Depth: 2.91 in
• Width: 1.5 in
• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Schneider Electric / Square D Product
• Dimensions (H x W x L): 3.12″ x 1.5″ x 2.91″

Alt model: q0b250
