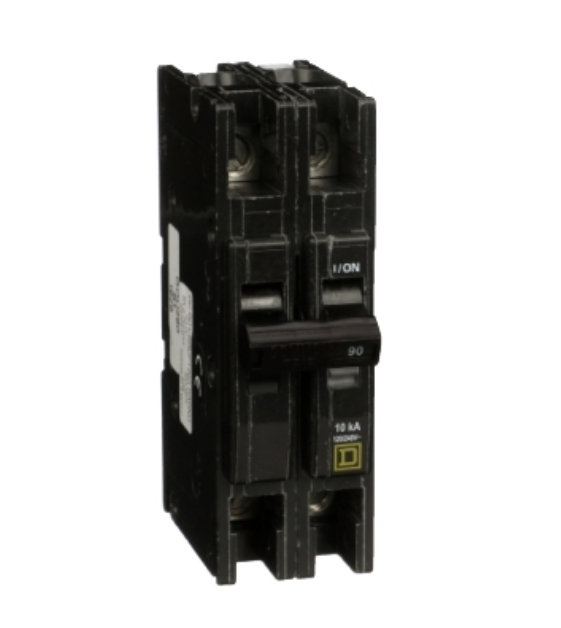

QOU290 – Square D Miniature Circuit Breaker

This product is a Miniature circuit breaker with shunt trip feature common tripping of all poles. The 2-pole unit mount circuit breaker features slotted box lug connection to accommodate aluminum or copper wires of size 12 – 2/0 AWG. It has interrupt current rating of 10 kilo-Amps to protect against overloads and short-circuits. It has a voltage rating of 120/240 VAC and a current rating of 90 Amps.

Specifications:

• Product or component type: Miniature circuit-breaker
• Range of product: QOU
• Circuit breaker type: Standard
• Circuit breaker application: HACR and Switching Duty rated
• Line Rated Current: 90 A
• Number of Poles: 2P
• Interrupt Rating: 10 kA at: 120/240 V AC, 10 kA at: 120 V AC, 5 kA at: 60 V DC
• Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
• System Voltage: 120 V AC, 120/240 V AC, 60 V DC
• Mounting mode: Unit mount
• AWG gauge: AWG 12…AWG 2/0 (aluminium/copper)
• Height: 4.45 in
• Depth: 2.95 in
• Width: 1.5 in
• Product certifications: CSA, IEC, UL listed
• Authentic Square D Product
• Dimensions (H x W x L): 4.45″ x 1.5″ x 2.95″

Alt model: q0u290
