TED124125WL – GE – Molded Case Circuit Breaker

SKU TED124125WL Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 624.99

TED124125WL – GE – Molded Case Circuit Breaker

SKU TED124125WL Category
Thumb

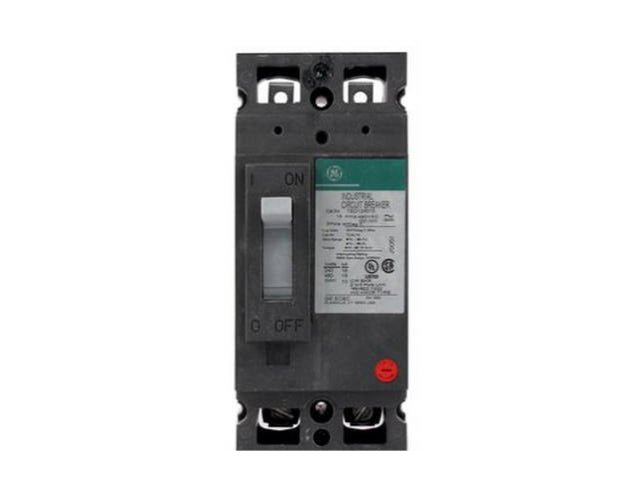

Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 624.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – TED124125WL – GE Molded Case Circuit Breaker

  • Part Number:

    TED124125WL

  • Manufacturer:

    General Electric

  • Family:

    E150 Line

  • Pole:

    2

  • Amp

    125

  • Volt:

    480

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Feed-Thru

  • Type:

    TED

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    6.31″ x 2.75″ x 4.09″

  • Weight:

    3.02 lbs

Standards

CSA Approved logo

Product Description – TED124125WL – GE Molded Case Circuit Breaker

General Electric, E150 Line, type TED, 2P, 1PH, 125A, 480V, 18kA@480V, complete with line & load side lug terminals, standard interrupting capacity, 40°C, feed-thru.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Data Sheet
