Three-Phase OLTC Substation Transformer – 10,000 kVA Capacity

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 450,000.00

Three-Phase OLTC Substation Transformer – 10,000 kVA Capacity

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 450,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description



Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (off‑load tap changer)
Winding Materials Copper or Aluminum
Core Material Grain‑Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger)
Dielectric Fluid Options Non‑PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

TEB111030 - GE - Molded Case Circuit Breaker
TEB111030 – GE – Molded Case Circui...
SKU: TEB111030
In stock
$ 167.99
FD2100 - Eaton - Molded Case Circuit Breaker
FD2100 – Eaton – Molded Case Circui...
SKU: MOLDED-3314
In stock
Original price was: $ 1,597.76.Current price is: $ 293.99.

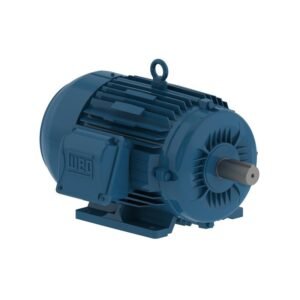

00736ET3E213T-W22 WEG Motor (7.5 HP, 213T FRAME, 208-230/460 V, THREE PHASE, TEFC , 3520 RPM)
