76 MVA 115kV to 35kV Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$1,800,000.00

76 MVA 115kV to 35kV Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$1,800,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 76 MVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is engineered for high-capacity step-down operation from 115 kV to 35 kV, delivering efficient and reliable power distribution for large utility, industrial, and commercial networks. Its OLTC allows precise voltage regulation under load, ensuring optimal performance in demanding service conditions while meeting stringent IEEE and UL standards.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 115 kV
Secondary Voltage 35 kV
Rated Capacity 76 MVA
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

XS32P2ACR U.S. Motors Duel and Single Label C F...
SKU: USMOTORS-1035
In stock
$832.17
QJ22B090 – Siemens – Molded Case Ci...
SKU: QJ22B090
In stock
$230.99
00156OT3H143TC-S WEG Motor (1.5 HP, 3600 RPM, 3...
SKU: WEG-0656
In stock
Original price was: $618.80.Current price is: $481.90.
8903LXG40V02 – Square D – 30 Amp Mo...
SKU: MOLDED-2635
In stock
$415.99
EM4104T-12 Premium Efficient Super-E Baldor In...
SKU: BALDOR-1820
In stock
Original price was: $10,058.75.Current price is: $6,777.08.
TH4322R – GE 60 Amp Disconnect and Safety...
SKU: TH4322R
In stock
$207.99

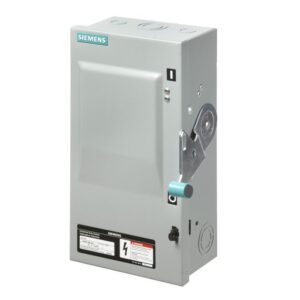

ID363NF – Siemens – Safety Switch
