TQD22125WL – GE – Molded Case Circuit Breaker

SKU TQD22125WL Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 700.99

TQD22125WL – GE – Molded Case Circuit Breaker

SKU TQD22125WL Category

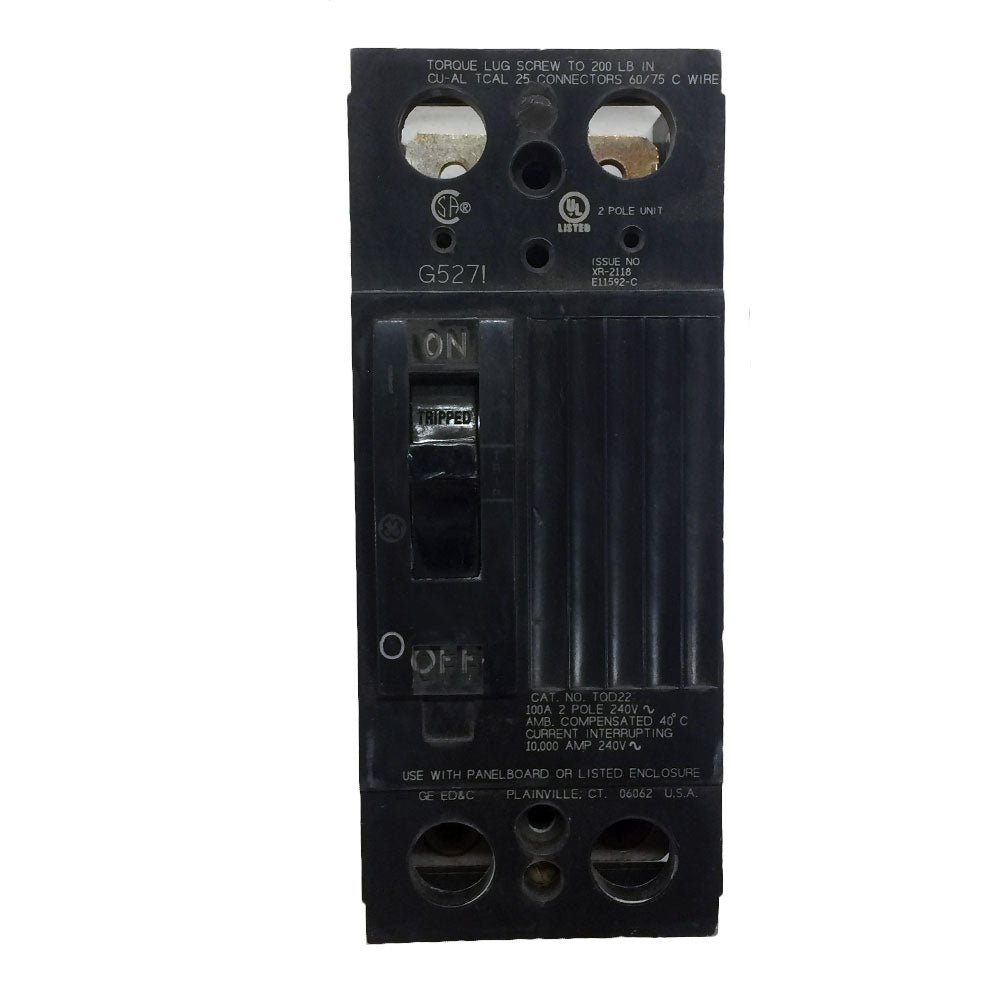

Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 700.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – TQD22125WL – GE Molded Case Circuit Breaker

  • Part Number:

    TQD22125WL

  • Manufacturer:

    General Electric

  • Family:

    Q-Line

  • Pole:

    2

  • Amp

    125

  • Volt:

    240

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Feed-Thru

  • Type:

    TQD

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    10kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.56″ x 2.75″ x 2.67″

  • Weight:

    2.85 lbs

Standards

CSA Approved logo

Product Description – TQD22125WL – GE Molded Case Circuit Breaker

General Electric Q-Line, Type TQD, 2P, 1PH, 150A, 240V, 10kA@240V, complete with non-interchangeable trip unit and line & load side lug terminals, standard interrupting capacity, 40 degree C, feed-thru, thermal magnetic molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
