1000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 150,000.00

1000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 150,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 1,000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is designed for accurate voltage regulation and reliable power delivery in industrial, commercial, and utility networks. Built for efficiency, durability, and compliance with IEEE and UL standards, it provides dependable performance under varying load conditions.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

3VA4150-5ED34-0AA0 - Siemens - Molded Case Circuit Breakers
3VA4150-5ED34-0AA0 – Siemens – Mold...
SKU: MOLDED-2323
In stock
$ 219.99
07589EP3PCT404VF1-W2 WEG NEMA Premium Efficiency Motor (75/18.5 HP, 3PH, 200 V)
07589EP3PCT404VF1-W2 WEG NEMA Premium Efficienc...
SKU: WEG-1995
In stock
Original price was: $ 18,493.80.Current price is: $ 14,402.05.
10036ET3G405HPH-W22 WEG NEMA P-Base Motor (100 HP, 75 kW, 3600 RPM, 404/5HPH Frame, 460 Voltage, 3 Phase, TEFC)
10036ET3G405HPH-W22 WEG NEMA P-Base Motor (100 ...
SKU: WEG-0185
In stock
Original price was: $ 16,780.40.Current price is: $ 13,067.73.

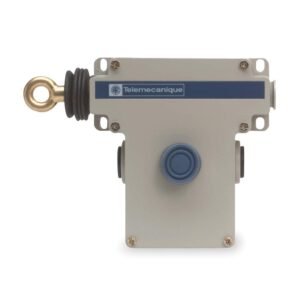

XY2CE2A250H7 - Square D - Safety Pull Switch
XY2CE2A250H7 – Square D – Safety Pu...
SKU: XY2CE2A250H7
In stock
$ 344.99

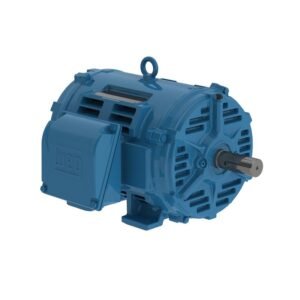

12512OT3G445T-W40 WEG Motor (125 HP, 444/5T FRAME, 460 V, THREE PHASE, ODP , 1185 RPM)
12512OT3G445T-W40 WEG Motor (125 HP, 444/5T FRA...
SKU: WEG-2480
In stock
Original price was: $ 16,578.90.Current price is: $ 12,910.82.
HOM2125 - Square D Homeline - Circuit Breaker
HOM2125 – Square D Homeline – Circu...
SKU: HOM2125
In stock
Original price was: $ 369.00.Current price is: $ 128.99.
07589EP3QCT404VF1-W2 WEG NEMA Premium Efficiency Motor (75/18.5 HP, 3 PH, 460V)
07589EP3QCT404VF1-W2 WEG NEMA Premium Efficienc...
SKU: WEG-1994
In stock
Original price was: $ 18,493.80.Current price is: $ 14,402.05.
SGHC3601L3XX - GE - Molded Case Circuit Breaker
SGHC3601L3XX – GE – Molded Case Cir...
SKU: SGHC3601L3XX
In stock
$ 1,587.99

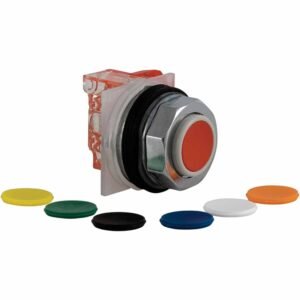

9001KR3UH13 - Square D - Automation Switch
