25 kVA 12470Y/7200 Single Phase Pad-Mount Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 6,700.00

25 kVA 12470Y/7200 Single Phase Pad-Mount Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 6,700.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 25 kVA Single-Phase Pad-Mount Transformer efficiently steps down 12470Y/7200V to 120/240V, making it ideal for smaller commercial, utility, and light industrial applications. Its dead-front, loop-feed configuration enhances operational safety, simplifies maintenance, and supports underground distribution systems. ONAN cooling ensures reliable, long-term performance, while the tamper-resistant pad-mount enclosure is built for durability in outdoor environments.

Technical Specifications:

  • Power Rating: 25 kVA

  • Phase: Single Phase

  • Primary Voltage: 12470Y/7200V

  • Secondary Voltage: 120/240V

  • Cooling: ONAN (Oil Natural Air Natural)

  • Configuration: Dead Front, Loop Feed

  • Mounting Type: Padmount

  • Insulation: Mineral Oil (FR3 fluid optional)

  • Application: Small Commercial, Utility, Light Industrial

  • Frequency: 60 Hz

  • Certifications: ANSI C57.12.00 / C57.12.34

  • Efficiency: Meets DOE 2016 energy efficiency standards

  • Temperature Rise: 65 °C

You may also like

Related products

Customers Also Bought

.3336OT1B48CH-S WEG C-Face Motor (.33 HP, 3600 RPM, 1 Phase, 60 Hz, 48CH Frame, ODP, 115/208-230 V)
.3336OT1B48CH-S WEG C-Face Motor (.33 HP, 3600 ...
SKU: WEG-1170
In stock
$ 0.00
07518OT3H365T-W40 WEG Motor (75 HP, 365T FRAME, 575 V, THREE PHASE, ODP , 1780 RPM)
07518OT3H365T-W40 WEG Motor (75 HP, 365T FRAME,...
SKU: WEG-2484
In stock
Original price was: $ 7,355.40.Current price is: $ 5,728.01.

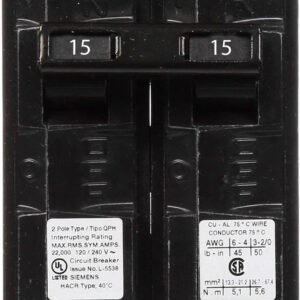

Q215H - Siemens - 15 Amp 22kA Circuit Breaker
Q215H – Siemens – 15 Amp 22kA Circu...
SKU: Q215H
In stock
Original price was: $ 314.00.Current price is: $ 63.97.
30018ET3G449TC-W22 WEG Motor (300 HP, 1800 RPM, 3 Phase, 60 Hz, 447/9TC, 460V, TEFC, Foot Mount)
30018ET3G449TC-W22 WEG Motor (300 HP, 1800 RPM,...
SKU: WEG-0854
In stock
Original price was: $ 41,587.00.Current price is: $ 32,385.87.
EM4112T Baldor General Purpose Motor (20 HP, 900 RPM, 3 Phase, 324T Frame, TEFC Enclosure, 230/460 Voltage)
EM4112T Baldor General Purpose Motor (20 HP, 90...
SKU: BALDOR-0789
In stock
Original price was: $ 15,138.75.Current price is: $ 10,199.74.
00156ET3E143T-W22 WEG Motor (1.5 HP, 143T FRAME, 460 V, THREE PHASE, TEFC , 3490 RPM)
00156ET3E143T-W22 WEG Motor (1.5 HP, 143T FRAME...
SKU: WEG-2893
In stock
Original price was: $ 705.90.Current price is: $ 549.72.
VECP2332T Baldor Severe Duty Motor (10 HP, 1200 RPM, 3 Phase, 256TC Frame, TEFC Enclosure, 230/460 Voltage)
VECP2332T Baldor Severe Duty Motor (10 HP, 1200...
SKU: BALDOR-1116
In stock
Original price was: $ 8,342.50.Current price is: $ 5,881.48.

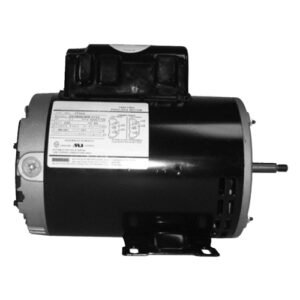

TT506 US Motor AQUA-SHIELD Thru-Bolt Pool & Spa Motor (4 HP, ODP, 3450 RPM, 230V)
