3000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 189,500.00

3000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 189,500.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 3,000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is engineered for efficient, high-capacity power distribution in industrial, commercial, and utility applications. It provides precise voltage regulation under varying load conditions and meets rigorous IEEE and UL standards for reliability and performance.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

IDFRPM25404 Baldor RPM AC Inverter Duty Motor (40 HP, 1800 RPM, 3 Phase, FL2586 Frame, TEFC Enclosure, 460 Voltage)
IDFRPM25404 Baldor RPM AC Inverter Duty Motor (...
SKU: BALDOR-0646
In stock
Original price was: $ 13,618.75.Current price is: $ 10,435.38.

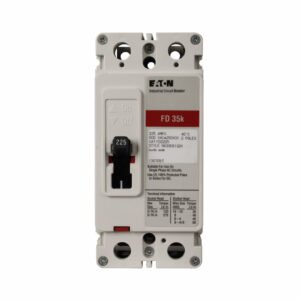

FD2040L - Eaton - Molded Case Circuit Breaker
FD2040L – Eaton – Molded Case Circu...
SKU: FD2040L
In stock
Original price was: $ 1,597.76.Current price is: $ 249.99.
Chevron Delo 600 ADF 10W-30 ISOCLEAN – 55 Gal Drum
Chevron Delo 600 ADF 10W-30 ISOCLEAN – 55 Gal D...
SKU: AMRO-00590
In stock
$ 2,499.99
102918.00 Leeson Motors (C4T17NH12, 1/2 HP, S56 Frame, 1725RPM, 208-230/460V, TENV)
102918.00 Leeson Motors (C4T17NH12, 1/2 HP, S...
SKU: LEESON-0238
In stock
$ 0.00
CD2P2E U.S. Motors General Purpose World Motor CORRO-Duty Motor (2 HP, 1800 RPM, 230/460 Voltage, 145T Frame, 3 Phase, TEFC)
CD2P2E U.S. Motors General Purpose World Motor ...
SKU: USMOTORS-0273
In stock
$ 584.69

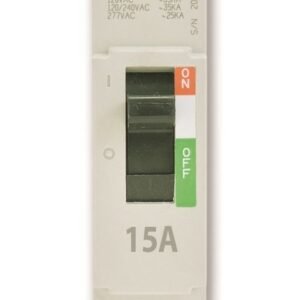

TEYL1015B - GE - Molded Case Circuit Breaker
TEYL1015B – GE – Molded Case Circui...
SKU: MOLDED-1518
In stock
$ 109.99

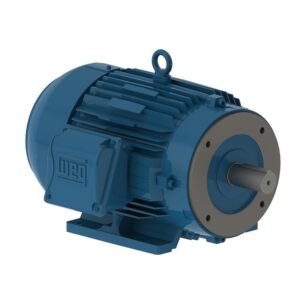

07536ET3E365TSC-W22 WEG Motor (75 HP, 3600 RPM, 3 Phase, 60 Hz, 364/5TSC, 230/460V, TEFC, Foot Mount)
