5000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 350,000.00

5000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 350,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 5000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is engineered for high-capacity, continuous operation in demanding industrial, commercial, and utility applications. Designed for precise voltage regulation under load, it delivers reliable, efficient power distribution while meeting rigorous IEEE and UL standards.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

808-J1 - Allen-Bradley - Speed Switch
808-J1 – Allen-Bradley – Speed Switch
SKU: 808-J1
In stock
$ 3,569.99
IDNM3587T Baldor AC Inverter/Vector Duty Motor (2 HP, 1800 RPM, 3 Phase, 145TC Frame, TENV Enclosure, 230/460 Voltage)
IDNM3587T Baldor AC Inverter/Vector Duty Motor ...
SKU: BALDOR-0601
In stock
Original price was: $ 2,902.50.Current price is: $ 2,224.05.
FXD62B125 - Siemens - Molded Case Circuit Breaker
FXD62B125 – Siemens – Molded Case C...
SKU: FXD62B125
In stock
$ 770.99
GHB3070S1 - Eaton - 70 Amp Molded Case Circuit Breaker
GHB3070S1 – Eaton – 70 Amp Molded C...
SKU: MOLDED-3396
In stock
Original price was: $ 2,293.81.Current price is: $ 699.99.
FAZ-B8-3 - Eaton - Circuit Breaker
FAZ-B8-3 – Eaton – Circuit Breaker
SKU: FAZ-B8/3
In stock
$ 89.99
800T-H17D1 - Allen-Bradley - Selector Switch
800T-H17D1 – Allen-Bradley – Select...
SKU: 800T-H17D1
In stock
$ 99.99
T1CM2J14 U.S. Motors General Purpose Motor (1 HP, 143T Frame, 1800 RPM)
T1CM2J14 U.S. Motors General Purpose Motor (1 H...
SKU: USMOTORS-1881
In stock
$ 832.00
TEB132050WL - GE - Molded Case Circuit Breaker
TEB132050WL – GE – Molded Case Circ...
SKU: MOLDED-2823
In stock
$ 339.99
Placeholder
A2X4RTK – Eaton – Auxiliary Switch
SKU: A2X4RTK
In stock
$ 327.99

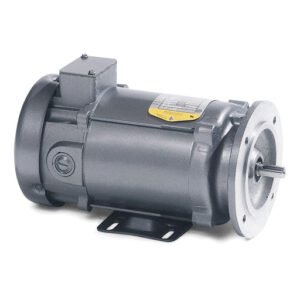

VP3428D Baldor Metric Flange Permanent Magnet SCR Drive Motor (.37/.5 kW/HP, 180 VDC, 3000 Base Speed)
