5000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 350,000.00

5000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 350,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 5000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is engineered for high-capacity, continuous operation in demanding industrial, commercial, and utility applications. Designed for precise voltage regulation under load, it delivers reliable, efficient power distribution while meeting rigorous IEEE and UL standards.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

00312ET3PCT213T-W22 WEG Motor, Cooling Tower (3 HP, 213T FRAME, 200 V, THREE PHASE, TEFC , 1170 RPM)-1
00312ET3PCT213T-W22 WEG Motor, Cooling Tower (...
SKU: WEG-2315
In stock
Original price was: $ 1,727.70.Current price is: $ 1,345.45.
Placeholder
Mobil Velocite No 10–55 Gallon Drum | ISO VG 10...
SKU: AMRO-00317
In stock
$ 0.00
IDVSNM3542 Baldor AC VS Master Motors (3/4 HP, 1800 RPM, 3 Phase, 56C Frame, TENV Enclosure, 230/460 Voltage)
IDVSNM3542 Baldor AC VS Master Motors (3/4 HP, ...
SKU: BALDOR-0563
In stock
Original price was: $ 1,235.00.Current price is: $ 946.31.
BRH340 - Eaton - 40 Amp Molded Case Circuit Breakers
BRH340 – Eaton – 40 Amp Molded Case...
SKU: BRH340
In stock
Original price was: $ 848.00.Current price is: $ 204.99.
Belden 82743 22 AWG 6 Pair, 300V Unshielded Audio, Control & Instrumentation Cable
Belden 82743 22 AWG 6 Pair, 300V Unshielded Aud...
SKU: BELDEN-BEL82743-FT
In stock
$ 32.59
PDG22F0070TFFJ - Eaton - Molded Case Circuit Breaker
PDG22F0070TFFJ – Eaton – Molded Cas...
SKU: MOLDED-4625
In stock
Original price was: $ 319.99.Current price is: $ 255.99.

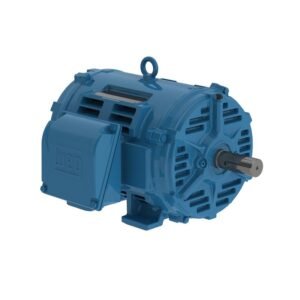

00712OT3E254T-W40 WEG Motor (7.5 HP, 254T FRAME, 208-230/460 V, THREE PHASE, ODP , 1175 RPM)
