75 kVA 12470Y/7200 Single Phase Pad-Mount Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 11,400.00

75 kVA 12470Y/7200 Single Phase Pad-Mount Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 11,400.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 75 kVA Single-Phase Pad-Mount Transformer efficiently steps down 12470Y/7200V to 120/240V, making it ideal for commercial, utility, and light industrial power distribution. Its dead-front, loop-feed configuration enhances safety, reduces maintenance needs, and integrates seamlessly into underground distribution networks. ONAN cooling ensures reliable, long-term performance, while the tamper-resistant pad-mount enclosure is designed for durability in demanding outdoor environments.

Technical Specifications:

  • Power Rating: 75 kVA

  • Phase: Single Phase

  • Primary Voltage: 12470Y/7200V

  • Secondary Voltage: 120/240V

  • Cooling: ONAN (Oil Natural Air Natural)

  • Configuration: Dead Front, Loop Feed

  • Mounting Type: Padmount

  • Insulation: Mineral Oil (FR3 fluid optional)

  • Application: Commercial, Utility, Light Industrial

  • Frequency: 60 Hz

  • Certifications: ANSI C57.12.00 / C57.12.34

  • Efficiency: Meets DOE 2016 energy efficiency standards

  • Temperature Rise: 65 °C

You may also like

Related products

Customers Also Bought

00312EG3E213T-W22 WEG General Purpose Severe Duty Motor (3 HP, 1200 RPM, 213/5T Frame, 230/460 Voltage, TEFC, 3 Phase)
00312EG3E213T-W22 WEG General Purpose Severe Du...
SKU: WEG-0366
In stock
Original price was: $ 1,614.60.Current price is: $ 1,257.37.
QO230VH - Square D - 30 Amp Molded Case Circuit Breaker
QO230VH – Square D – 30 Amp Molded ...
SKU: QO230VH
In stock
$ 79.99
HGB2B025B - Siemens - Molded Case Circuit Breaker
HGB2B025B – Siemens – Molded Case C...
SKU: HGB2B025B
In stock
$ 156.99
01536XT3E254T WEG Explosion Proof Motor (15 HP, 3600 RPM, 3 Phase, 254T Frame, 208-230/460 Voltage, Explosion Proof)
01536XT3E254T WEG Explosion Proof Motor (15 HP,...
SKU: WEG-1786
In stock
Original price was: $ 3,103.10.Current price is: $ 2,416.54.

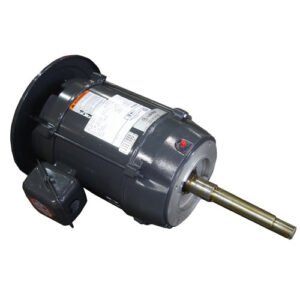

FF20E1XV U.S. Motors Vertical Fire Pump Motor (20 HP, 200/400 Voltage, Three Phase, 3600 RPM)
FF20E1XV U.S. Motors Vertical Fire Pump Motor (...
SKU: USMOTORS-1164
In stock
$ 2,765.41

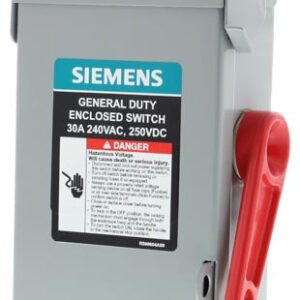

GNF321A - Siemens - Disconnect Switch
GNF321A – Siemens – Disconnect Switch
SKU: GNF321A
In stock
$ 42.99

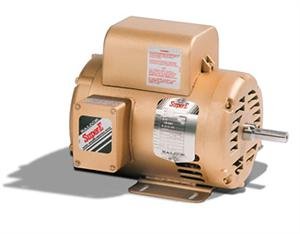

EL1405T Premium Efficient Super-E Baldor Single Phase Motor, ODP, 182T Frame (2 HP, 1800 RPM)
EL1405T Premium Efficient Super-E Baldor Singl...
SKU: BALDOR-1628
In stock
Original price was: $ 2,246.25.Current price is: $ 1,538.69.
WD34S1AC U.S. Motors Washdown Motor (3/4 HP, 56C Frame, C-Face , 3600 RPM)
WD34S1AC U.S. Motors Washdown Motor (3/4 HP, 56...
SKU: USMOTORS-1731
In stock
$ 520.10

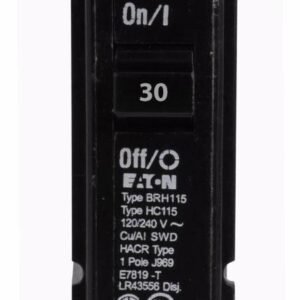

BRH130 - Eaton - 30 Amp Molded Case Circuit Breaker
