NGB2B100B – Siemens – Molded Case Circuit Breaker

SKU NGB2B100B Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 186.99

NGB2B100B – Siemens – Molded Case Circuit Breaker

SKU NGB2B100B Category
Thumb

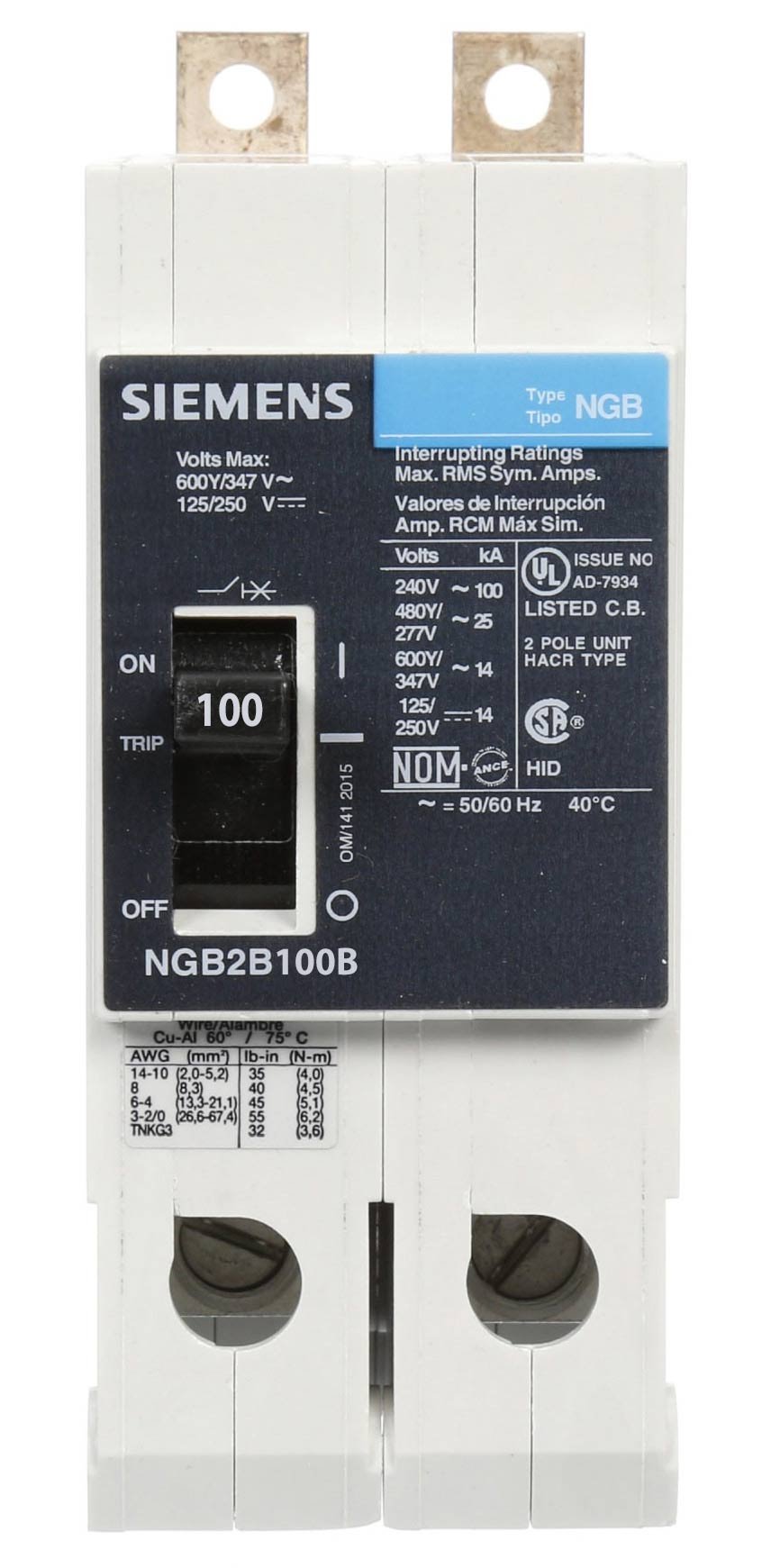

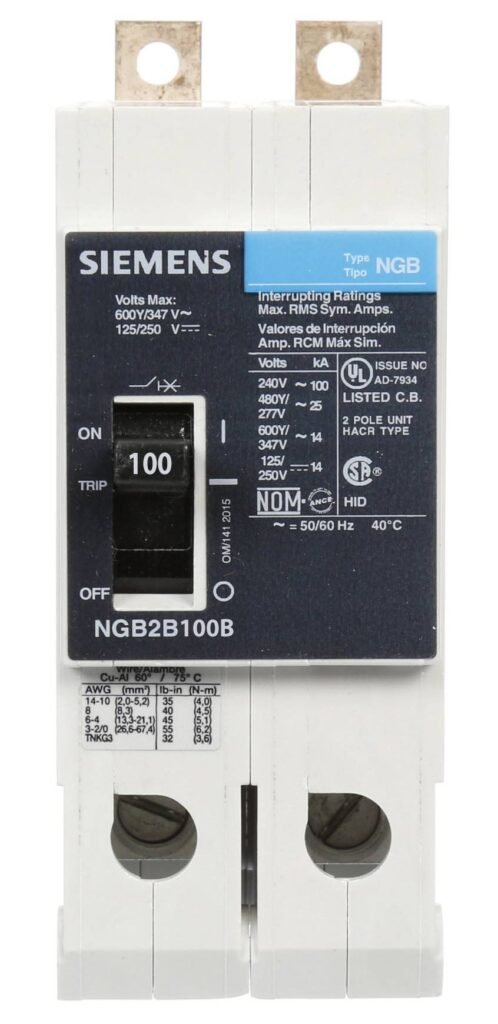

Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 186.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – NGB2B100B – Siemens Molded Case Circuit Breaker

  • Part Number:

    NGB2B100B

  • Manufacturer:

    Siemens / ITE

  • Family:

    VL Series

  • Pole:

    2

  • Amp

    100

  • Volt:

    600

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Bolt-On

  • Type:

    NGB

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    25kA@480V

Dimensions

  • Dimensions (HxWxD):

    2″ x 5.54″ x 2.8″

  • Weight:

    1.88 lbs

Standards

CSA Approved logo

Product Description – NGB2B100B – Siemens Molded Case Circuit Breaker

Siemens, VL Series, type NGB, 2P, 1PH, 100A, 600V, 25kA@480V, standard interrupting capacity, panelboard mounting, suitable for reverse feed applications, bolt-on, complete with LI – Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications
