THHQB2170 – GE – 22kA Circuit Breaker

SKU THHQB2170 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 225.00.Current price is: $ 83.99.

THHQB2170 – GE – 22kA Circuit Breaker

SKU THHQB2170 Category
Thumb
Thumb
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 225.00.Current price is: $ 83.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

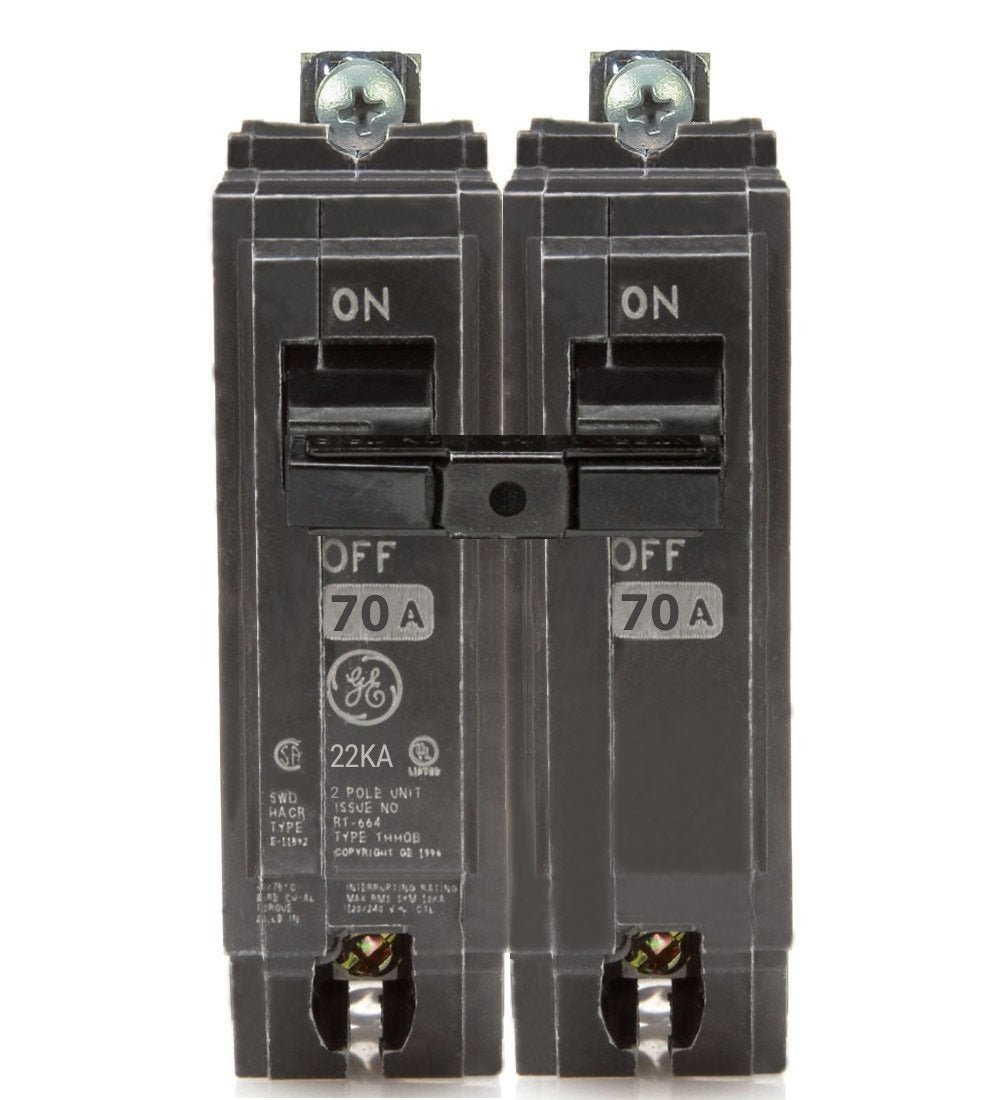

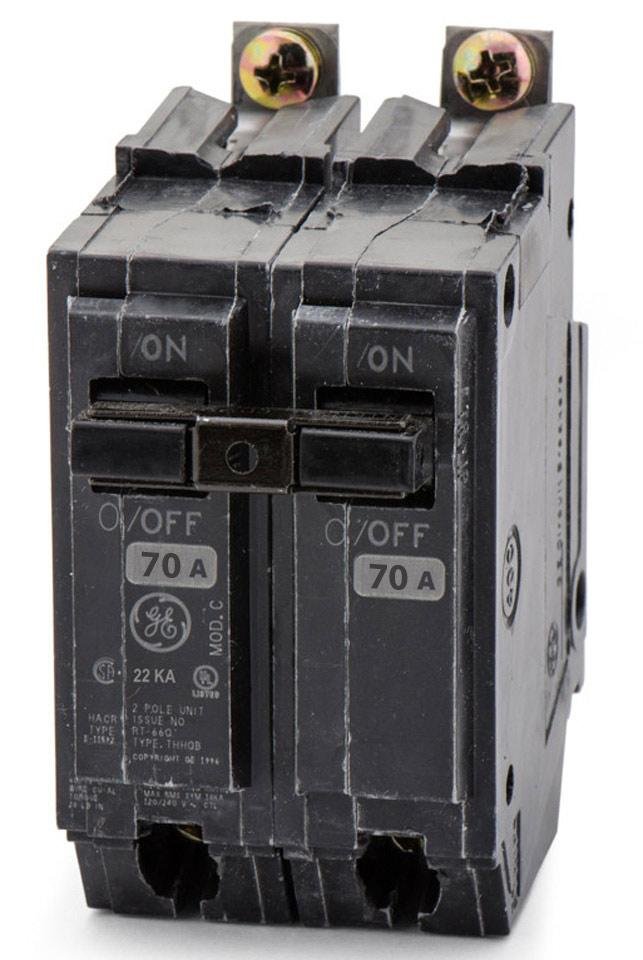

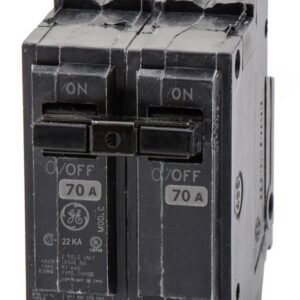

THHQB2170 – GE Bolt-On Molded Case Circuit Breaker

General Electric THHQB Series double pole single phase 70 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic common trip (LI) Long-Time and Instantaneous trip functions and load side lug terminals.

Specifications:

  • Trip Style: Non-Interchangeable
  • Frame Type: Q-Line
  • Amperage: 70 A
  • System Voltage: 120 Vac, 120/240 Vac
  • Poles: 2
  • Trip Function: LI
  • Continuous Current Rated: Standard
  • 120 Vac Interrupting Rating: 22 KAIC
  • 120/240 Vac Interrupting Rating: 22 KAIC
  • Suitable for Reverse Feed: Yes
  • Long Time: Fixed
  • Instantaneous: Fixed
  • Protective Relays: No
  • Current Metering: No
  • Special Markings: HACR
  • GSA Compliance: No
  • Authentic General Electric Product
