1000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 150,000.00

1000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 150,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 1,000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is designed for accurate voltage regulation and reliable power delivery in industrial, commercial, and utility networks. Built for efficiency, durability, and compliance with IEEE and UL standards, it provides dependable performance under varying load conditions.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

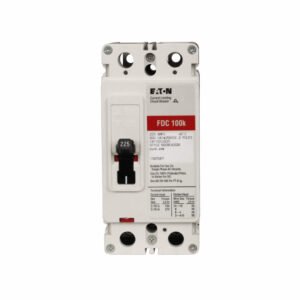

FDC2070L - Eaton - Molded Case Circuit Breaker
FDC2070L – Eaton – Molded Case Circ...
SKU: FDC2070L
In stock
Original price was: $ 969.99.Current price is: $ 846.99.

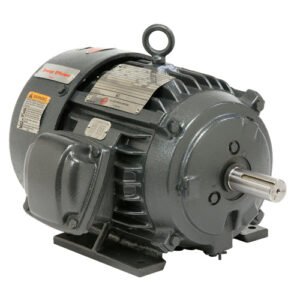

YC5P1B U.S. Motors Corro Duty Hazardous Location Motor (5 HP, 230/460 Voltage, Three Phase, 3600 RPM)
